Product Summary

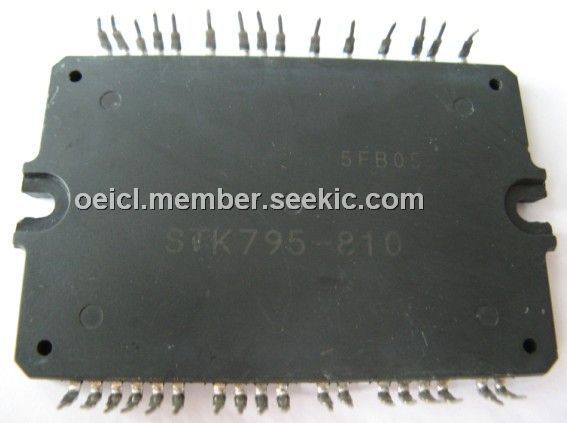

The STK795-810 is a chopper type voltage regulator.
Parametrics
STK795-810 absolute maximum ratings: (1)Maximum DC input voltage Vin(DC)max: 40V; (2)Maximum output current Iomax: 3A; (3)Operating case temperature Tc: 105℃; (4)Junction temperature Tj: 150℃; (5)Storage temperature Tstg: -30 to +105℃.
Features
STK795-810 features: (1)Self-oscillation type chopper regulator power IC using Sanyo original IMST(Insulated Metal Substrate Technology)substrate; (2)Functional trimming is used to set 5V output with high accuracy; (3)Cut off function to cut off output voltage by external signal; (4)Contains a transistor for overcurrent protector(foldback characteristic)and possible to set the protection level eaternally.
Diagrams
 |
