Product Summary
The W25X32VSIG is a flash memory with 4kb sectors and dual output spi. It provides a storage solution for systems with limited space, pins and power. The device offers flexibility and performance well beyond ordinary Serial Flash devices. The W25X32VSIG is ideal for code download applications as well as storing voice, text and data. The devices operate on a single 2.7V to 3.6V power supply with current consumption as low as 5mA active and 1μA for power-down. The device is offered in space-saving packages.
Parametrics
W25X32VSIG absolute maximum ratings: (1)Supply Voltage VCC: –0.6 to +4.0 V; (2)On the condition of Relative to Ground, Voltage applied to any Pin VIO: –0.6 to VCC +0.4 V; (3)On the conditions of <20nS Transient Relative to Ground, Transient Voltage on any Pin VIOT: –2.0V to VCC+2.0V V; (4)Storage Temperature TSTG: –65 to +150 ℃; (5)On the condition of Human Body Model, Electrostatic Discharge Voltage VESD: –2000 to +2000 V.
Features
W25X32VSIG features: (1)SPI with Single or Dual Outputs: Clock, Chip Select, Data I/O, Data Out; Optional Hold function for SPI flexibility; (2)Data Transfer up to 150M-bits / second: Clock operation to 75MHz; Fast Read Dual Output instruction; Auto-increment Read capability; (3)Flexible Architecture with 4KB sectors: Sector Erase (4K-bytes); Block Erase (64K-byte); Page program up to 256 bytes <2ms; Up to 100,000 erase/write cycles; 20-year retention.

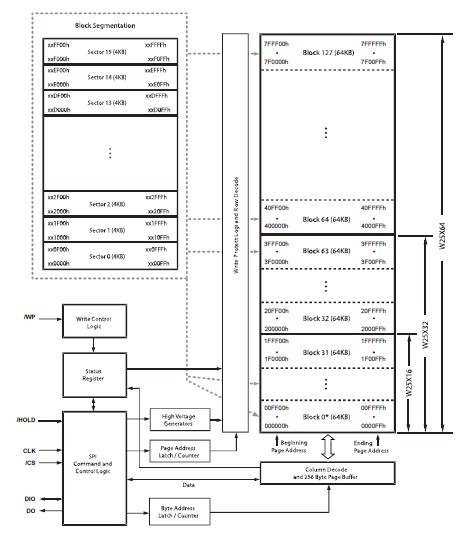

Diagrams
 |
