Product Summary

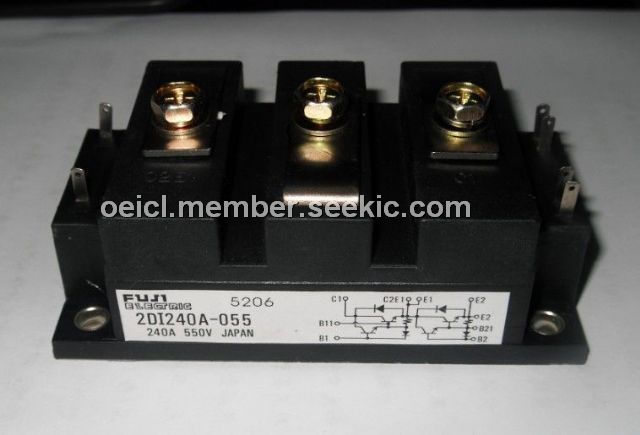

The 2DI240A-055 is a 600 V class power transistor module.

Parametrics

Absolute maximum ratings: (1)VCBO: 600 V; (2)VCEO: 600 V; (3)VCEO: 550 V; (4)Ic cont.: 240 A; (5)Pc: 1000 W; (6)hFE min: 70; (7)switching time max: ton: 2.0 μsec, tstg: 12 μsec.

Features

Features: (1)power transistors and free wheel diodes are built into one package; (2)all terminal are insulated from mounting plate; (3)suited for motor control applications with 220 to 240 volts inputs; (4)all terminals are screw-clamp type.

Diagrams
