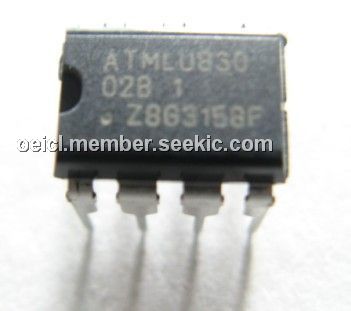

AT24C02B-10PU

EEPROM, DIP8, Low-voltage, Lead-free/Halogen-free, Self-timed Write Cycle, 6.25V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.12~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.12~0.20

PartNumber:: AT24C02B-10PU

Brand:: ATMEL Corporation - ATMEL | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. LIN HAIBIN's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-08

From Other Seller

Part Number:AT24C02B-10PU
US $0.12 - 0.20
BUZZER PIEZO 4KHZ 12.2MM

US $0.43 - 0.79 / Piece
(0) Remove
CONN PLUG HOUSING CPC 6POS

US $3.37 - 3.82 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT24C02B-10PU is a EEPROM. It provides 2048 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 256 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The AT24C02B-10PU is available in space-saving 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead Ultra Thin Mini-MAP (MLP 2×3), 5-lead SOT23, 8-lead TSSOP, and 8-ball dBGA2 packages and is accessed via a Two-wire serial interface. In addition, it is available in 1.8V (1.8V to 5.5V) version.

Parametrics

AT24C02B-10PU absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃ ; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground: -1.0V to +7.0V; (4)Maximum Operating Voltage: 6.25V; (5)DC Output Current: 5.0 mA.

Features

AT24C02B-10PU features: (1)Low-voltage and Standard-voltage Operation: 1.8 (VCC = 1.8V to 5.5V); (2)Internally Organized 256 × 8 (2K); (3)Two-wire Serial Interface; (4)Schmitt Trigger, Filtered Inputs for Noise Suppression; (5)Bidirectional Data Transfer Protocol; (6)1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V) Compatibility; (7)Write Protect Pin for Hardware Data Protection; (8)8-byte Page (2K) Write Modes; (9)Partial Page Writes Allowed; (10)Self-timed Write Cycle (5 ms max); (11)Lead-free/Halogen-free; (12)Die Sales: Wafer Form, Waffle Pack and Bumped Wafers.
