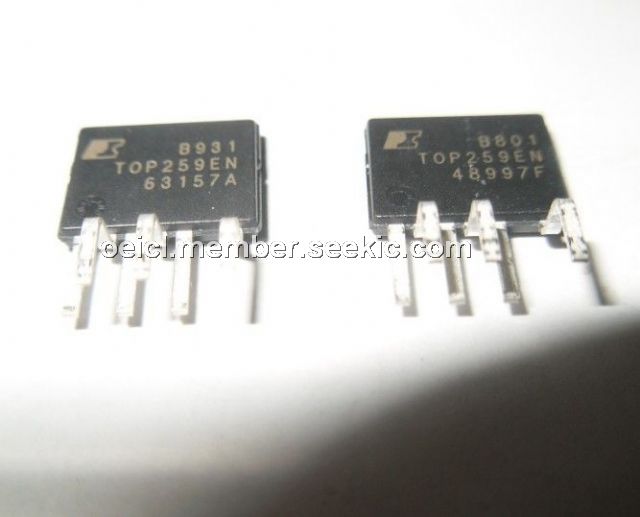

Product Summary

The TOP259EN is an Enhanced EcoSmart, Integrated Off-Line Switcher with Advanced Feature Set and Extended Power Range.

Parametrics

Absolute maximum ratings: (1)DRAIN Peak Voltage: -0.3 V to 700 V; (2)DRAIN Peak Current: 7.73 A; (3)CONTROL Voltage: -0.3 V to 9 V; (4)CONTROL Current : 100 mA; (5)VOLTAGE MONITOR Pin Voltage: -0.3 V to 9 V; (6)CURRENT LIMIT Pin Voltage: -0.3 V to 4.5 V; (7)MULTI-FUNCTION Pin Voltage: -0.3 V to 9 V; (8)FREQUENCY Pin Voltage: -0.3 V to 9 V; (9)Storage Temperature: -65 ℃ to 150 ℃; (10)Operating Junction Temperature: -40 ℃ to 150 ℃; (11)Lead Temperature: 260 ℃.

Features

Features: (1)Multi-mode operation maximizes effi ciency at all loads; (2)New eSIP-7F and eSIP-7C packages; (3)No heatsink required up to 35 W using P, G and M packages with universal input voltage and up to 48 W at 230 VAC; (4)Output overvoltage protection (OVP) is user programmable for latching/non-latching shutdown with fast AC reset.

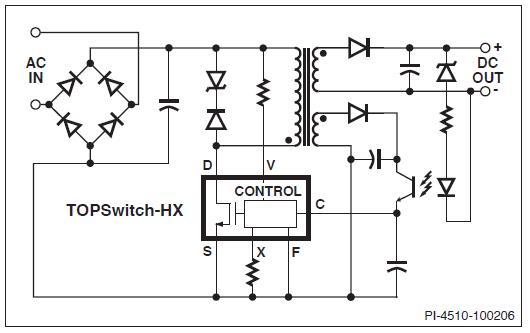

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TOP259EN
TOP259EN
Power Integrations
AC/DC Switching Converters Int Off-Line Switchr 171W/238W
Data Sheet
0-1: $1.66
1-25: $1.33
25-100: $1.03
100-250: $1.01
