Product Summary

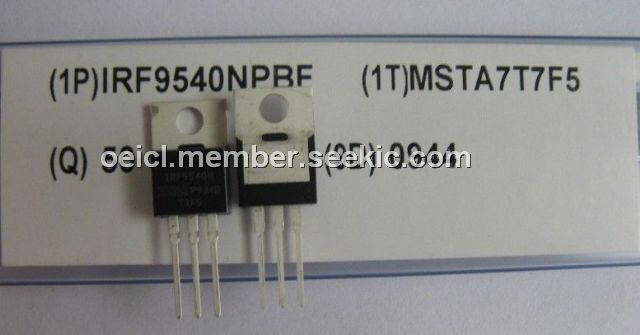

The IRF9540NPBF is a Power MOSFET. It is provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.
Parametrics
Absolute maximum ratings: (1)Continuous Drain Current, VGS @ -10V:-23A; (2)Continuous Drain Current, VGS @ -10V:-16A; (3)Pulsed Drain Current:-76A; (4)Power Dissipation:140 W; (5)Linear Derating Factor:0.91 W/℃; (6)Gate-to-Source Voltage:±20 V; (7)Avalanche Current:-11A; (8)Repetitive Avalanche Energy:14 mJ; (9)Peak Diode Recovery dv/dt:5.0 V/ns; (10)Operating Junction and Storage Temperature Range:-55℃ to +175℃; (11)Soldering Temperature, for 10 seconds:300℃ (1.6mm from case ).
Features
Features: (1)Lead-free; (2)Advanced process technology; (3)Dynamic dv/dt rating; (4)175℃ operating temperature; (5)Fast switching; (6)P-channel; (7)Fully avalanche rated.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() IRF9540NPBF |
![]() International Rectifier |
![]() MOSFET MOSFT PCh -100V -23A 117mOhm 64.7nC |
![]() Data Sheet |
![]()
|
|
||||||||||||
