Product Summary

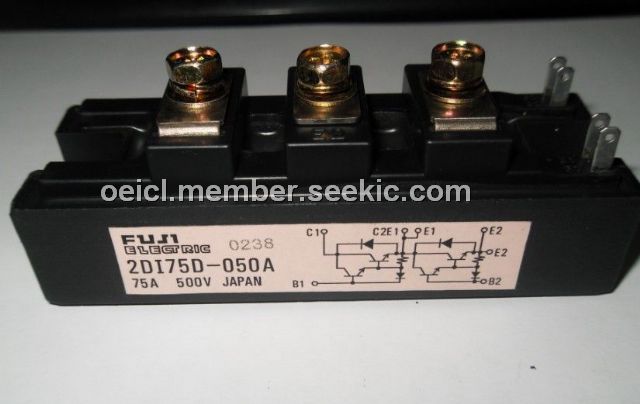

The 2DI75D-050A is a power transistor module.

Parametrics

Absolute maximum ratings: (1)VCBO: 600 V; (2)VCEO: 600 V; (3)VCEO (SUS): 450 V; (4)VEBO: 7 V; (5)IC: 75 A; (6)ICP: 150 A; (7)junction temperature: +150 ℃; (8)storage temperature: -40 to +125 ℃.

Features

Features: (1)including free wheeling diode; (2)high DC current gain; (3)insulated type.

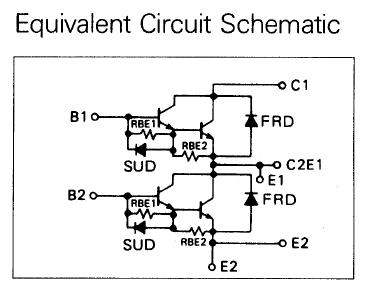

Diagrams
