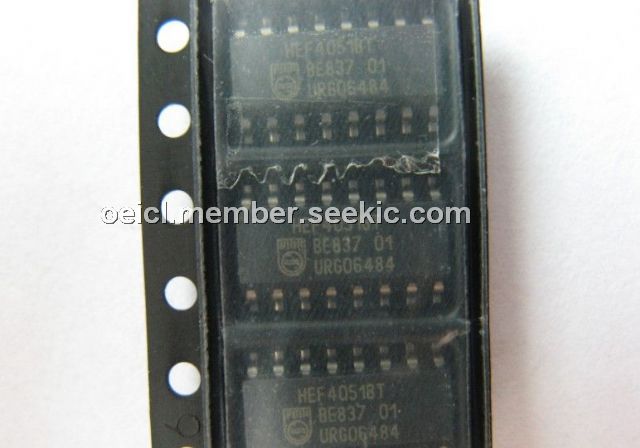

Product Summary

The HEF4051BT is an 8-channel analogue multiplexer/demultiplexer. The device contains eight bidirectional analogue switches, each with one side connected to an independent input/output (Y0 to Y7) and the other side connected to a common input/output (Z).

Parametrics

Absolute maximum ratings: (1)supply voltage:-0.5V to +18V; (2)supply voltage:-18V to +0.5V; (3)input clamping current:±10mA; (4)input voltage:-0.5V to VDD+0.5V; (5)input/output current:±10mA; (6)supply current:50mA; (7)storage temperature:-65℃ to +150℃; (8)ambient temperature:-40℃ to +125℃; (9)total power dissipation:500mW.

Features

Features: (1)Fully static operation; (2)5 V, 10 V, and 15 V parametric ratings; (3)Standardized symmetrical output characteristics; (4)Operates across the automotive temperature range:-40℃ to +125℃; (5)Complies with JEDEC standard JESD 13-B.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HEF4051BT,013
HEF4051BT,013

NXP Semiconductors

Multiplexer Switch ICs 8-CHANNEL ANALOG

Data Sheet

0-1: $0.32
1-25: $0.29
25-100: $0.25
100-250: $0.22
HEF4051BT,652
HEF4051BT,652

NXP Semiconductors

Multiplexer Switch ICs 8-CHANNEL MUX/DEMUX

Data Sheet

0-1: $0.11
1-25: $0.10
25-100: $0.10
100-250: $0.09
HEF4051BTS,112
HEF4051BTS,112

NXP Semiconductors

Multiplexer Switch ICs 8-CHANNEL MUX/DEMUX

Data Sheet

0-1: $0.39
1-25: $0.34
25-100: $0.30
100-250: $0.26
HEF4051BTS,118
HEF4051BTS,118

NXP Semiconductors

Multiplexer Switch ICs 8-CHANNEL MUX/DEMUX

Data Sheet

0-1: $0.22
1-25: $0.19
25-100: $0.16
100-250: $0.14
HEF4051BTSDB
HEF4051BTSDB

NXP Semiconductors

Multiplexer Switch ICs 8-CHANNEL MUX/DEMUX

Data Sheet

Negotiable
HEF4051BTSDB-T
HEF4051BTSDB-T

NXP Semiconductors

Multiplexer Switch ICs 8-CHANNEL MUX/DEMUX

Data Sheet

Negotiable
HEF4051BT-F
HEF4051BT-F

NXP Semiconductors

Multiplexer Switch ICs 8-CHANNEL ANALOG MUX/DEMUX

Data Sheet

Negotiable
HEF4051BTD
HEF4051BTD

NXP Semiconductors

Multiplexer Switch ICs 8-CHANNEL MUX/DEMUX

Data Sheet

Negotiable
