Product Summary

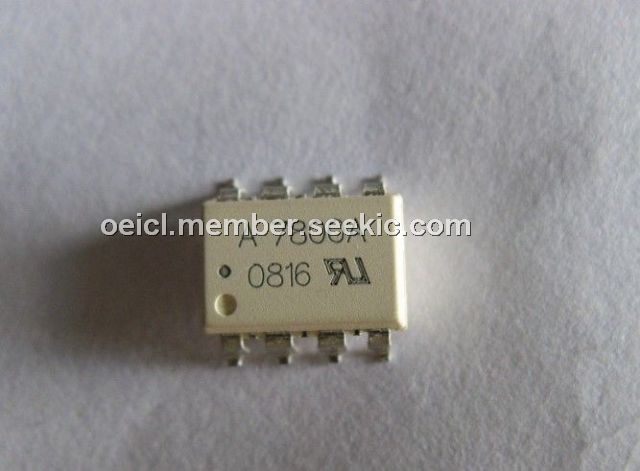

The HCPL-7800A is a high CMR isolation amplifier. The device provides a unique combination of features ideally suited for motor control circuit designers.

Parametrics

Absolute maximum ratings: (1)Storage Temperature:-55℃ to 125℃; (2)Ambient Operating Temperature:-40℃ to 100℃; (3)Supply Voltages:0V to 5.5V; (4)Steady-State Input Voltage:-2.0V to VDD1+0.5V; (5)Two Second Transient Input Voltage:-6.0; (6)Output Voltages:-0.5V to VDD2+0.5V; (7)Lead Solder Temperature:260℃(1.6 mm below seating plane, 10 sec.).

Features

Features: (1)15 kV/μs Common-Mode Rejection at VCM = 1000V; (2)Compact, Auto-Insertable Standard 8-pin DIP Package; (3)4.6 μV/°C Offset Drift vs. Temperature; (4)0.9 mV Input Offset Voltage; (5)85 kHz Bandwidth; (6)0.1% Nonlinearity; (7)Worldwide Safety Approval: UL 1577 (3750 V rms/1 min), VDE 0884 and CSA; (8)Advanced Sigma-Delta A/D Converter Technology; (9)Fully Differential Circuit Topology; (10)1 μm CMOS IC Technology.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HCPL-7800A
HCPL-7800A

Avago Technologies

Special Purpose Amplifiers 4.5 - 5.5 SV 8 dB

Data Sheet

0-50: $6.76
50-100: $6.08
100-250: $5.74
250-500: $5.41
HCPL-7800A#300
HCPL-7800A#300

Avago Technologies

Isolation Amplifiers 4.5 - 5.5 SV 8 dB

Data Sheet

0-50: $6.78
50-100: $6.10
100-250: $5.77
250-500: $5.42
HCPL-7800A-300E
HCPL-7800A-300E

Avago Technologies

Isolation Amplifiers 4.5 - 5.5 SV 8 dB

Data Sheet

0-1: $7.63
1-25: $6.78
25-100: $6.10
100-250: $5.77
HCPL-7800A-500E
HCPL-7800A-500E

Avago Technologies

Isolation Amplifiers 4.5 - 5.5 SV 8 dB

Data Sheet

0-625: $5.42
625-1000: $5.09
HCPL-7800A#500
HCPL-7800A#500

Avago Technologies

Isolation Amplifiers 4.5 - 5.5 SV 8 dB

Data Sheet

0-625: $5.42
625-1000: $5.09
HCPL-7800A-000E
HCPL-7800A-000E

Avago Technologies

Special Purpose Amplifiers 4.5 - 5.5 SV 8 dB

Data Sheet

0-1: $7.60
1-25: $6.76
25-100: $6.08
100-250: $5.74
