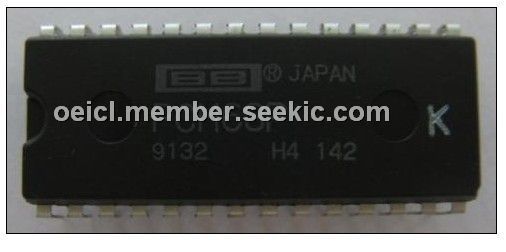

Product Summary
The PCM63P-K is a precision 20-bit digital-to-analog converter with ultra-low distortion (–96dB max with a full scale output; PCM63P-K). Incorporated into the PCM63P-K is a unique Colinear dual-DAC per channel architecture that eliminates unwanted glitches and other nonlinearities around bipolar zero. The PCM63P-K also features a very low noise (116dB max SNR; A-weighted method) and fast settling current output (200ns typ, 2mA step) which is capable of 16-times oversampling rates.
Parametrics
PCM63P-K absolute maximum ratings: (1)+VA, +VD to ACOM/DCOM: 0V to +8V; (2)–VA, –VD to ACOM/DCOM: 0V to –8V; (3)–VA, –VD to +VA, +VD: 0V to +16V; (4)ACOM to DCOM: ±0.5V; (5)Digital Inputs (pins 18, 20, 21) to DCOM: –1V to +VD; (6)Power Dissipation: 500mW; (7)Lead Temperature, (soldering, 10s): +300℃; (8)Max Junction Temperature: 165℃; (9)Thermal Resistance, θJA: 70℃/W.
Features
PCM63P-K features: (1)Colinear 20-bit audio dac; (2)Near-ideal low level operation; (3)Glitch-free output; (4)Ultra low –96dB max THD+N (Without ExternaAdjustment); (5)116dB SNR min (A-Weight Method); (6)Industry std serial input format; (7)Fast (200ns) current output (±2mA; ±2% max); (8)Capable of 16x oversampling; (9)Complete with reference.

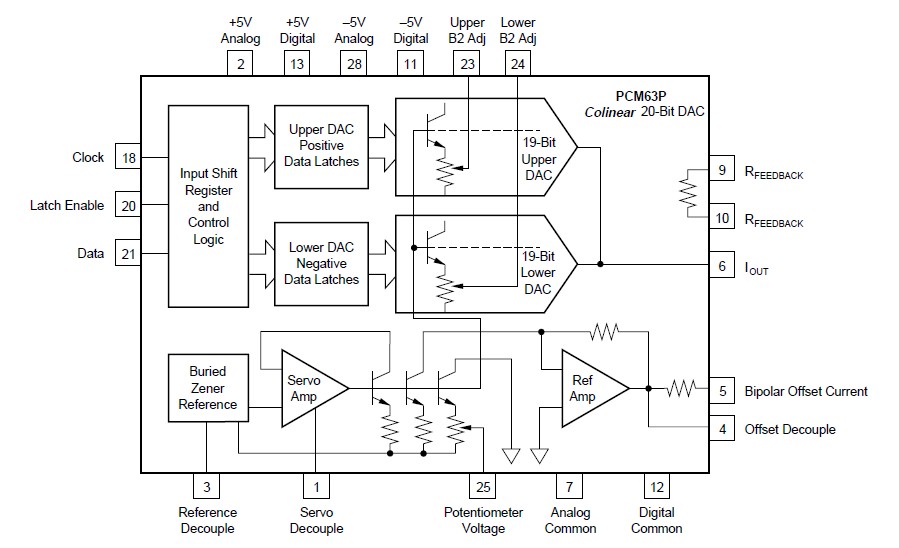

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
PCM63P-K |
Texas Instruments |
IC SERIAL INPUT 20 BIT D/A 28DIP |
Data Sheet |
Negotiable |
|
|||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
PCM61P |
Texas Instruments |
IC SERIAL INPUT 18 BIT D/A 16DIP |
Data Sheet |
Negotiable |
|
|||||
PCM63P |
Texas Instruments |
IC 20-BIT AUDIO DAC 28-DIP |
Data Sheet |
Negotiable |
|
|||||
PCM63P-J |
Texas Instruments |
IC 20-BIT AUDIO DAC 28-DIP |
Data Sheet |
Negotiable |
|
|||||
PCM63P-K |
Texas Instruments |
IC SERIAL INPUT 20 BIT D/A 28DIP |
Data Sheet |
Negotiable |
|
|||||
