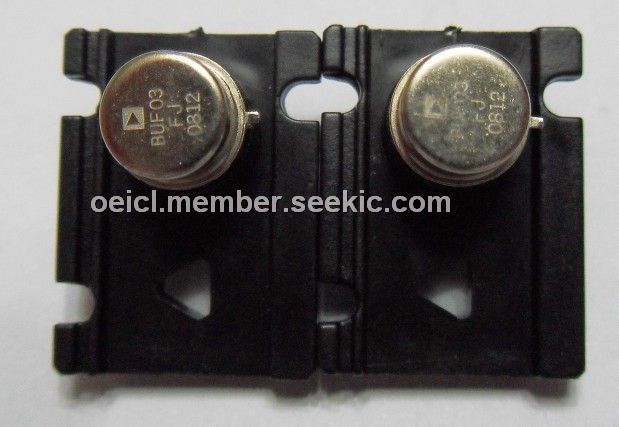

Product Summary

The BUF03FJ is the first very high-speed monolithic voltage follower. featuring performance previously unobtainable in a monolithic unit, the BUF03FJ offers a combination of both exceptional speed and excellent input/output specifications. Implemented in an open-loop circuit employing source followers and emitter followers, the BUF03FJ utilizes a quasi-quad FET input structure to optimize both speed and DC input characteristics.

Parametrics

BUF03FJ absolute maximum ratings: (1)supply voltage: ±18V; (2)internal power dissipation in still air without heat sink: 1.00 W; (3)input voltage: ±18V; (4)continuous output current: 70 mA; (5)peak output current: 100 mA; (6)short circuit protection: indefinite; (7)maximum junction temperature: 175℃; (8)storage temperature range: -65 to +175℃; (9)operating temperature range: -55 to +125℃; (10)lead temperature: 300℃.

Features

BUF03FJ features: (1)very high slew rate: 220V/s min; (2)wide bandwidth: 63 MHz; (3)load drive current: 70 mA peak; (4)easily drives large capacitive loads without oscillation; (5)high input rasistance: 5x1011; (6)low output rasistance: 2; (7)very low bias current: 400pA max; (8)low offset voltage: 6 mV max; (9)unity gain: 0.997 V/V; (10)excellent gain linearity: 0.015%; (11)avaliabe in die form.

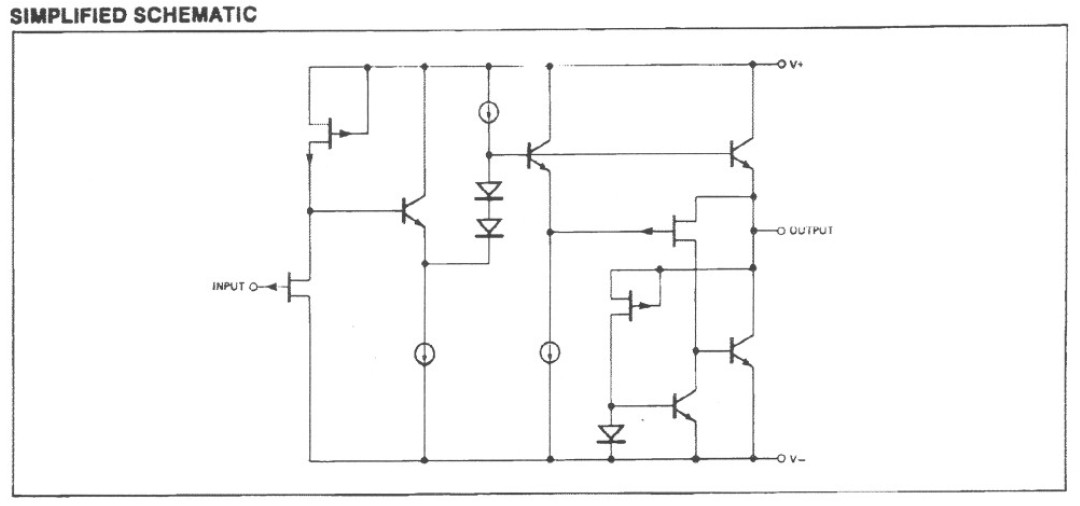

Diagrams
