Product Summary

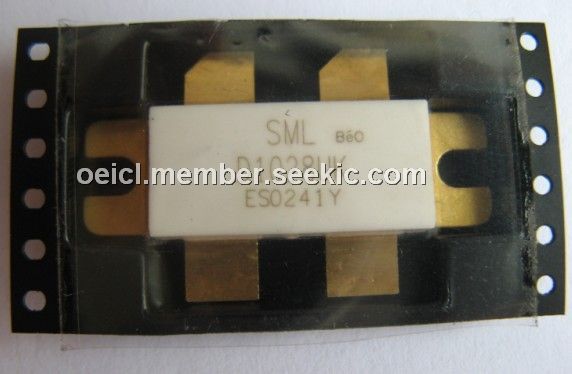

The D1028UK is a gold metallised multi-purpose silicon DMOS RF FET, which is 300W-28V-175MHz. The applications of the D1028UK include VHF/UHF communications from 1 MHz to 200 MHz.

Parametrics

D1028UK absolute maximum ratings: (1)Power Dissipation: 438 W; (2)Drain-Source Breakdown Voltage: 70 V; (3)Gate-Source Breakdown Voltage: ±20 V; (4)Drain Current: 30 A; (5)Storage Temperature: -65 to 150℃; (6)Maximum Operating Junction Temperature: 200℃.

Features

D1028UK features: (1)simplified amplifier design; (2)suitable for broad band applications; (3)low Crss; (4)simple bias circuits; (5)low noise; (6)high gain -13 dB minimum.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
D1028UK
D1028UK

Other


Data Sheet

Negotiable
