Product Summary

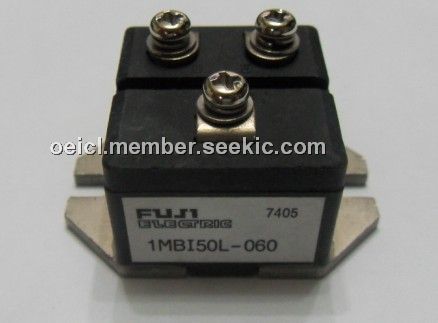

The 1MBI50L-060 is an IGBT module. The applications of the device include ideal for chopper application, AC and DC servo drive supply, uninterruptible power supply and industrial machines.
Parametrics
1MBI50L-060 absolute maximum ratings: (1)collecter-emitter voltage, VCES: 600V; (2)gate-emitter voltage, VGES: ±20V; (3)collector current, continuous, IC: 50A; 1ms, IC pulse: 100A; (4)max power dissipation, PC: 200W; (5)operating temperature, Ti: 150℃; (6)storage temperature, Tstg: -40 to 125℃; (7)isolation voltage, AC 1min, VIS: 2500V; (8)screw torque, mounting: 1.7Nm; terminals: 1.7Nm.
Features
1MBI50L-060 features: (1)high speed switching; (2)low saturation voltage; (3)voltage drive; (4)isolated package.

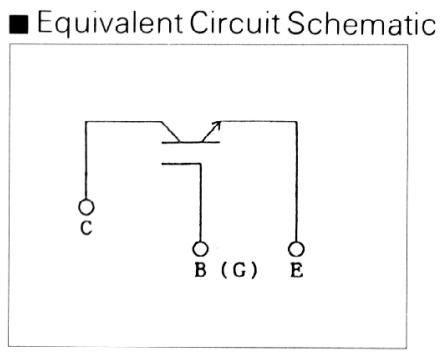

Diagrams
 |
