Product Summary
The AT45DB161D-SU is a 2.5-volt or 2.7-volt, serial-interface sequential access Flash memory ideally. It is suited for a wide variety of digital voice-, image-, program code- and data-storage applications.
Parametrics
Absolute maximum ratings: (1)Temperature under Bias:-55℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)All Input Voltages (except VCC but including NC pins); (4)with Respect to Ground:-0.6V to +6.25V; (5)All Output Voltages with Respect to Ground:-0.6V to VCC + 0.6V.
Features
Features: (1)Single 2.5V - 3.6V or 2.7V - 3.6V Supply; (2)RapidS Serial Interface: 66 MHz Maximum Clock Frequency:SPI Compatible Modes 0 and 3; (3)Two SRAM Data Buffers (512/528 Bytes):Allows Receiving of Data while Reprogramming the Flash Array; (4)Continuous Read Capability through Entire Array:Ideal for Code Shadowing Applications; (5)Low-power Dissipation; (6)Hardware and Software Data Protection Features:Individual Sector; (7)Sector Lockdown for Secure Code and Data Storage:Individual Sector; (8)JEDEC Standard Manufacturer and Device ID Read; (9)100,000 Program/Erase Cycles Per Page Minimum; (10)Data Retention-20 Years; (11)Industrial Temperature Range; (12)Green (Pb/Halide-free/RoHS Compliant) Packaging Options.

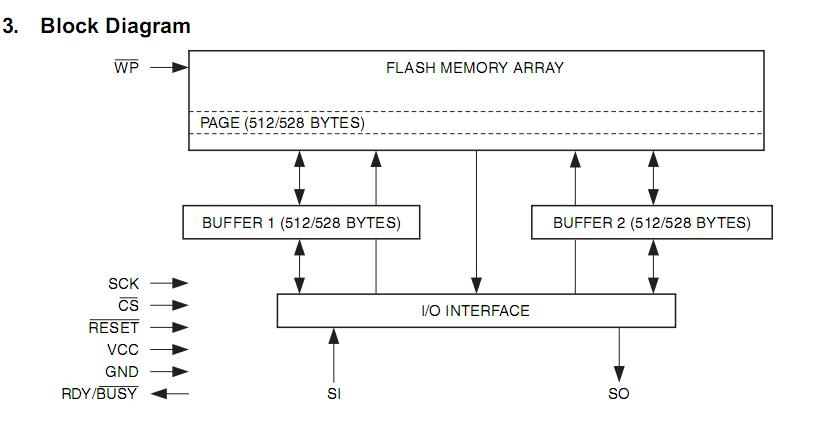

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

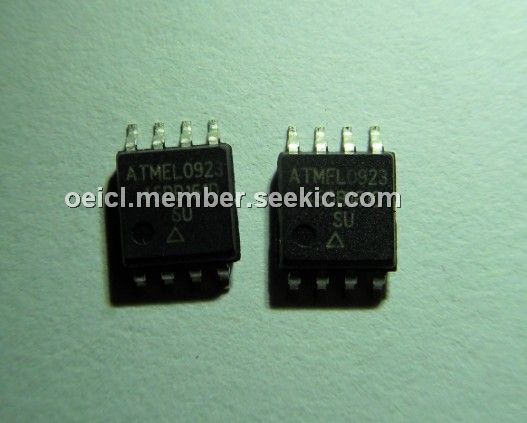

 AT45DB161D-SU |
Atmel |
Flash 16M 8 I/O Pins SPI 528B 2.5V 2.7V |
Data Sheet |
Negotiable |
|
||||
|
AT45DB161D-SU-2.5 |
Atmel |
Flash 16MB SERIAL - IND TEMP |
Data Sheet |
Negotiable |
|
||||
