Product Summary

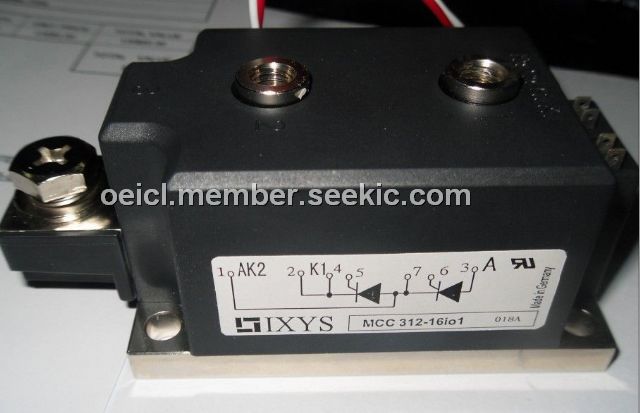

The MCC312-16I01 is a Thyristor Module. The applications of the device include Motor control, softstarter, Power converter, Heat and temperature control for industrial furnaces and chemical processes, Lighting control and Solid state switches.

Parametrics

MCC312-16I01 absolute maximum ratings: (1)ITRMS, IFRMS: 520 A when TVJ = TVJM; (2)ITAVM, IFAVM: 320 A when TC = 85℃; 180° sine; (3)ITSM, IFSM: 9200 A when TVJ = 45℃; t = 10 ms (50 Hz); 10100A when VR = 0 t = 8.3 ms (60 Hz); 8000 A when TVJ = TVJM t = 10 ms (50 Hz); 8800 A when VR = 0 t = 8.3 ms (60 Hz); (4)∫i2dt: 423 000 A2s when TVJ = 45℃ t = 10 ms (50 Hz); 423 000 A2s when VR = 0 t = 8.3 ms (60 Hz); 320 000 A2s when TVJ = TVJM t = 10 ms (50 Hz); 321 000 A2s when VR = 0 t = 8.3 ms (60 Hz); (5)(dv/dt)cr: 1000 V/μs; (6)PGM: 120W; (7)PGAV: 20 W; (8)VRGM: 10 V; (9)TVJ: -40 to+140℃; (10)TVJM: 140℃; (11)Tstg -40 to+125℃; (12)VISOL: 3000 V; (13)Weight Typical including screws: 750 g.

Features

MCC312-16I01 features: (1)International standard package; (2)Direct copper bonded Al2O3-ceramic with copper base plate; (3)Planar passivated chips; (4)Isolation voltage 3600 V~; (5)UL registered E 72873; (6)Keyed gate/cathode twin pins.
