Product Summary

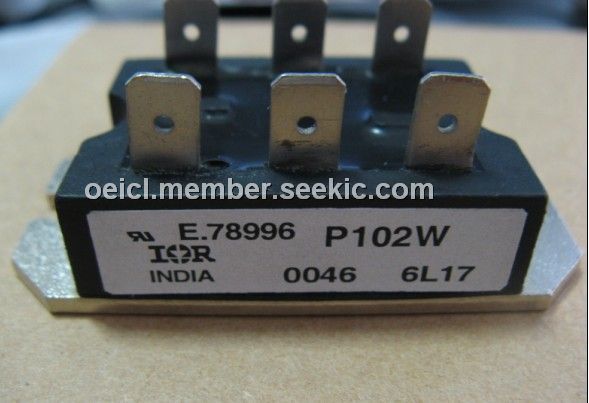

The P102W is a passivated assembled circuit element. The P102W Integrated Power Circuit consists of power thyristors and power diodes configured in a single package. With its isolating base plate, mechanical designs are greatly simplified giving advantages of cost reduction and reduced size. Applications include power supplies, control circuits and battery chargers.

Parametrics

P102W maximum ratings: (1)ID: 25 A; (2)ID @ TC: 85 ℃; (3)IFSM @50Hz: 357 A; (4)IFSM @ 60Hz: 375 A; (5)I2t @50Hz: 637 A2s; (6)I2t @ 60Hz: 580 A2s; (7)VRRM: 400 to 1200 V; (8)VINS: 2500 V; (9)TJ: - 40 to 125 ℃.

Features

P102W features: (1)Glass passivated junctions for greater reliability; (2)Electrically isolated base plate; (3)Available up to 1200 VRRM, VDRM; (4)High dynamic characteristics; (5)Wide choice of circuit configurations; (6)Simplified mechanical design and assembly.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
P102W
P102W

SCR HY-BRIDGE 600V 25A PACE-PAK
Data Sheet
0-1: $22.30
1-10: $20.79
10-100: $18.08
100-250: $16.87
250-500: $16.03
500-1000: $15.37
1000-2500: $14.95
2500-5000: $14.46
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
P102
P102

SCR HY-BRIDGE 600V 25A PACE-PAK
Data Sheet
0-10: $20.82
P1020-5R0474-2
P1020-5R0474-2
Cooper Bussmann
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT CAP AERO 0.47F
Data Sheet
0-48: $6.25
48-50: $5.95
50-100: $5.65
100-250: $5.35
P1020-BD
P1020-BD
Other

Data Sheet
Negotiable
P1020NSE2FFB
P1020NSE2FFB
Freescale Semiconductor
Digital Signal Processors & Controllers (DSP, DSC) 667/333/667 ST WE r1.1
Data Sheet
0-1: $47.29
1-25: $44.61
25-100: $27.88
P1020NSN2HFB
P1020NSN2HFB
Freescale Semiconductor
Digital Signal Processors & Controllers (DSP, DSC) 800/400/667 ST NE r1.1
Data Sheet
0-1: $54.42
1-25: $51.34
25-100: $32.09
P1020NXE2DFB
P1020NXE2DFB
Freescale Semiconductor
Digital Signal Processors & Controllers (DSP, DSC) 533/333/667 ET WE r1.1
Data Sheet
0-1: $45.31
1-25: $42.75
25-100: $26.72
