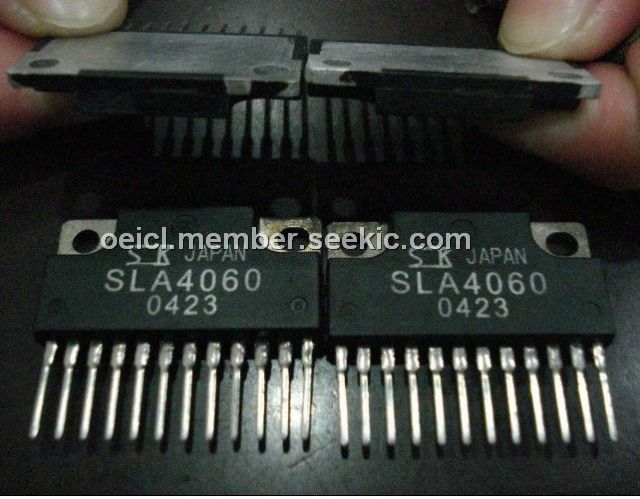

The SLA4060 is a NPN darlington general purpose.
Parametrics
SLA4060 absolute maximum ratings: (1)VCBO: 120 V; (2)VCEO: 120 V; (3)VEBO: 6 V; (4)IC: 5 A; (5)ICP: 8 (PW≤1ms, Du≤50%) A; (6)IB: 0.5 A; (7)PT: 5 W(Ta=25℃); 25 W(Tc=25℃); (8)VISO: 1000 (Between fin and lead pin, AC) Vrms; (9)Tj: 150 ℃; (10)Tstg: –40 to +150 ℃; (11)θj-c: 5 ℃/W.
Features
SLA4060 characteristics: (1)On the conditions of VCB=120V, ICBO: max=10 μA; (2)On the conditions of VEB=6V, IEBO: max=10 mA; (3)On the conditions of IC=25mA, VCEO: min=120 V; (4)On the conditions of VCE=2V, IC=3A, hFE: min=2000, typ=5000, max=15000; (5)On the conditions of IC=3A, IB=3mA, VCE(sat): typ=1.0 V, max=1.5V; VBE(sat): typ=1.6 V, max=2.0 V; (6)On the conditions of VCC≈30V, ton: typ=0.5 μs; (7)On the conditions of IC=3A, tstg: typ=5.5 μs; (8)On the conditions of IB1=–IB2=3mA, tf: typ=1.5 μs.
