Product Summary

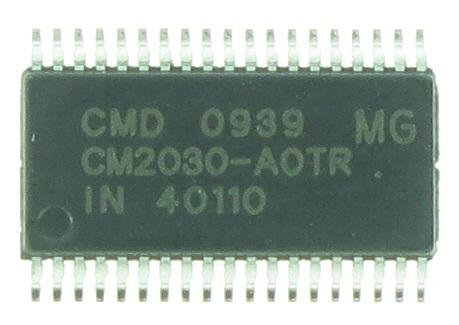

The CM2030-A0TR is a HDMI Transmitter Port Protection and Interface Device. It is specifically designed for next generation HDMI Host interface protection.

Parametrics

Absolute maximum ratings: (1)VCC5, VCCLV:6.0V ; (2)DC Voltage at any Channel Input:[GND - 0.5]V to [VCC + 0.5]V ; (3)Storage Temperature Range:65℃ to +150℃.

Features

Features: (1)HDMI 1.3 compliant ; (2)Supports thin dielectric and 2-layer boards ; (3)Minimizes TMDS skew with 0.05pF matching ; (4)Long HDMI cable support with integrated I2C accelerator ; (5)Active termination and slew rate limiting for CEC ; (6)Supports direct connection to CEC microcontroller ; (7)Integrated I2C level shifting to CMOS level including low logic level voltages ; (8)Integrated 8kV ESD protection and backdrive protection on all external I/O lines ; (9)Integrated overcurrent output protection per HDMI 1.3 ; (10)Multiport I2C support eliminates need for analog mux on DDC lines ; (11)Simplified layout with matched 0.5mm trace spacing ; (12)RoHS-compliant, lead-free packaging.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CM2030-A0TR
CM2030-A0TR
ON Semiconductor
ESD Suppressors HDMI Receiver Port C
Data Sheet
0-1: $1.02
1-25: $0.82
25-100: $0.74
100-250: $0.66
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CM2006
CM2006
Other

Data Sheet
Negotiable
CM2006-02QR
CM2006-02QR
ON Semiconductor
Video ICs VGA Port Monitor
Data Sheet
0-1: $0.54
1-10: $0.49
10-50: $0.43
50-100: $0.41
CM2009
CM2009
Other

Data Sheet
Negotiable
CM2009-00QR
CM2009-00QR
ON Semiconductor
Video ICs VGA Port Circuit 55 Ohm
Data Sheet
0-1: $0.57
1-10: $0.51
10-50: $0.46
50-100: $0.43
CM2009-02QR
CM2009-02QR
ON Semiconductor
Video ICs VGA Port Circuit 15 Ohm
Data Sheet
0-1: $0.52
1-10: $0.43
10-50: $0.41
50-100: $0.31
CM200C-32.768KAZF-UT
CM200C-32.768KAZF-UT
Citizen
Crystals 32.768K 30ppm 12.5pF
Data Sheet
0-3000: $0.18
3000-9000: $0.18
9000-18000: $0.17
