Product Summary

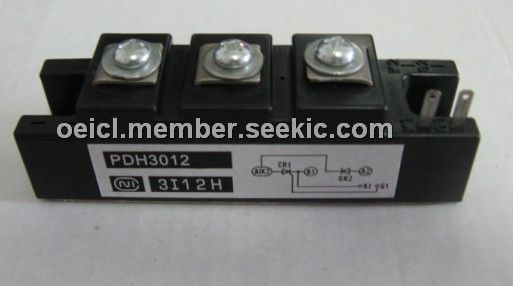

The PDH3012 is a thyristor module. It is rectified for general use.
Parametrics
PDH3012 absolute maximum ratings: (1)Repetitive Peak Off-State Voltage VDRM: 1200V; (2)Non Repetitive Peak Off-State Voltage VDSM: 1300V; (3)Repetitive Peak Reverse Voltage VRRM: 1200V; (4)Non Repetitive Peak Reverse Voltage VRSM: 1300V.
Features
PDH3012 features: (1)Isolated Base; (2)Dual Thyristors or Thyristor and Diode Cascaded Circuit; (3)High Surge Capability; (4)UL Recognized, File No. E187184.

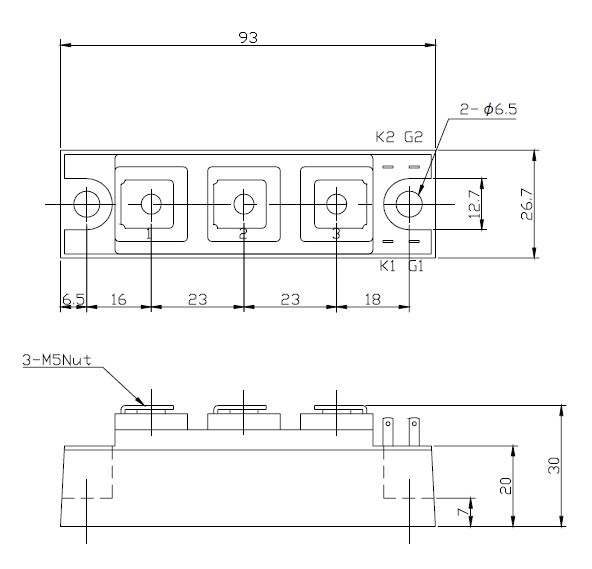

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
PDH3012 |
Other |
Data Sheet |
Negotiable |
|
||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
PDH3012 |
Other |
Data Sheet |
Negotiable |
|
||||||
PDH3016 |
Other |
Data Sheet |
Negotiable |
|
||||||
PDH308 |
Other |
Data Sheet |
Negotiable |
|
