Product Summary
The TDA7360 is a 22W bridge/stereo audio amplifier with clipping detector. It is designed for car radio applications. The device provides a circuit for the detection of clipping in the output stages. The output, an open collector, is able to drive systems with automatic volume control.
Parametrics
TDA7360 absolute maximum ratings: (1)VS Operating Supply Voltage: 18 V; (2)VS DC Supply Voltage: 28 V; (3)VS Peak Supply Voltage (for t = 50ms): 50 V; (4)Io Output Peak Current (non rep. for t = 100μs): 5 A; (5)Io Output Peak Current (rep. freq. > 10Hz: 4 A; (6)Ptot Power Dissipation at Tcase = 85℃: 36 W; (7)Tstg ,TJ Storage and Junction Temperature: -40 to 150 ℃.
Features
TDA7360 features: (1)very few external components; (2)no boucherot cells; (3)no boost rap capacitors; (4)high output power; (5)no switch on/off noise; (6)very low stand-by current; (7)fixed gain (20db stereo); (8)programmable turn-on delay; (9)clipping detector.

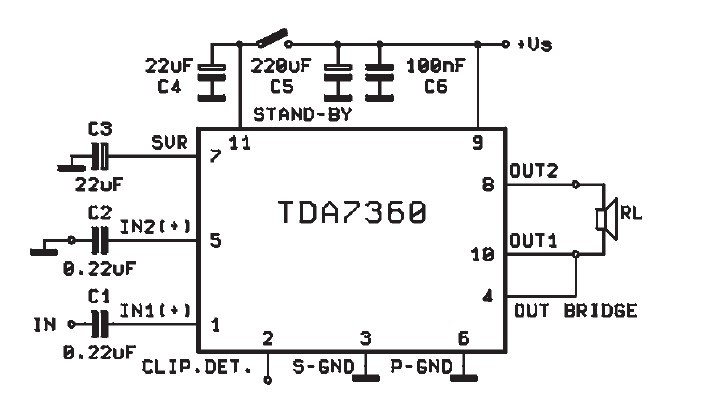

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

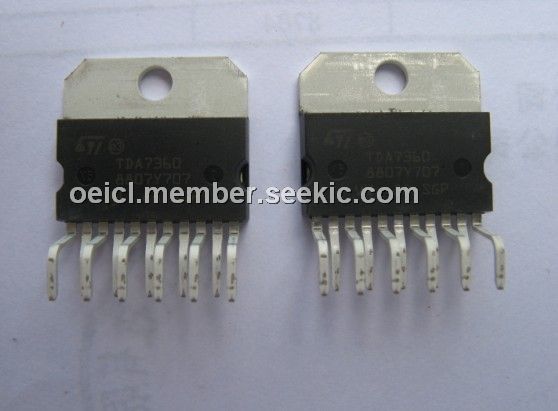

 TDA7360 |
STMicroelectronics |
Audio Amplifiers 22W Stereo Amplifier |
Data Sheet |
Negotiable |
|
||||
|
TDA7360HS |
STMicroelectronics |
Audio Amplifiers 18V Op 28V DC 36W 50V Supply 5A Output |
Data Sheet |
Negotiable |
|
||||
