Product Summary

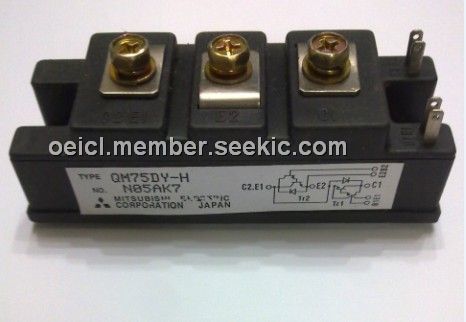

The QM75DY-H is a MITSUBISHI transistor module, which is designed for high power switching.

Parametrics

Absolute maximum ratings: (1)Collector-emitter voltage: 600 V; (2)Collector-emitter voltage: 600 V; (3)Collector-base voltage: 600 V; (4)Emitter-base voltage: 7 V; (5)Collector current: 75 A; (6)Collector reverse current: 75 A; (7)Collector dissipation: 350 W; (8)Base current: 4.5 A; (9)Surge collector reverse current: 750 A; (10)Junction temperature: -40 to +150℃; (11)Storage temperature: -40 to +125℃.

Features

Features: (1)IC Collector current: 75A; (2)VCEX Collector-emitter voltage: 600V; (3)hFE DC current gain: 75; (4)Insulated Type; (5)UL Recognized: Yellow Card No. E80276 (N), File No. E80271.

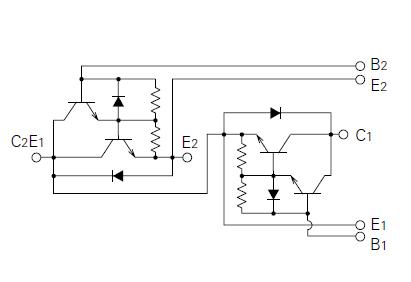

Diagrams
