Product Summary
The P103W Integrated Power Circuits consists of power thyristor and power diode configured in a single package. With its isolating base plate, mechanical designs are greatly simplified giving advantages of cost reduction and reduced size. Applications of the P103W include power supplies, control circuits and battery chargers.
Parametrics
P103W maximum ratings: (1)ID: 25 A; (2)ID @ TC: 85℃; (3)IFSM @50Hz: 357 A; (4)IFSM @ 60Hz: 375 A; (5)I2t @50Hz: 637 A2s; (6)I2t @ 60Hz: 580 A2s; (7)VRRM: 400 to 1200 V; (8)VINS: 2500 V; (9)TJ: - 40 to 125℃.
Features
P103W features: (1)Glass passivated junctions for greater reliability; (2)Electrically isolated base plate; (3)Available up to 1200 VRRM, VDRM; (4)High dynamic characteristics; (5)Wide choice of circuit configurations; (6)Simplified mechanical design and assembly; (7)UL E78996 approved.

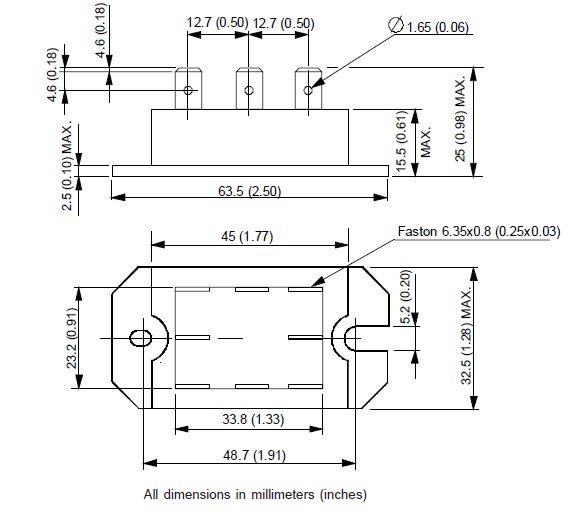

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

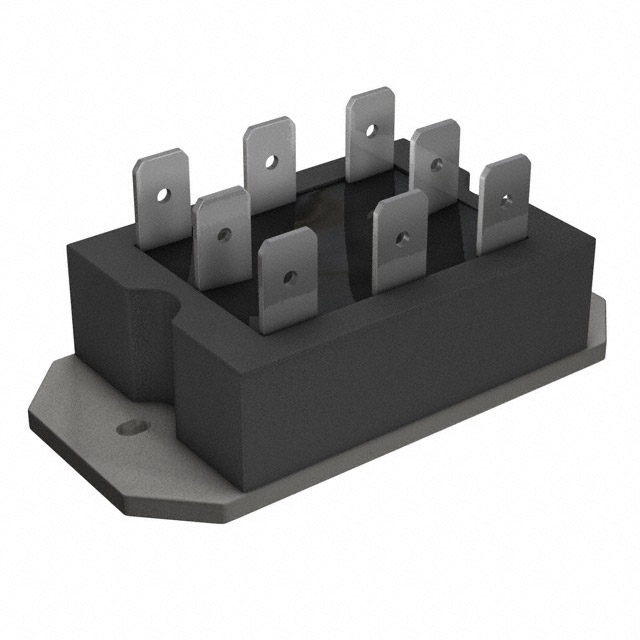

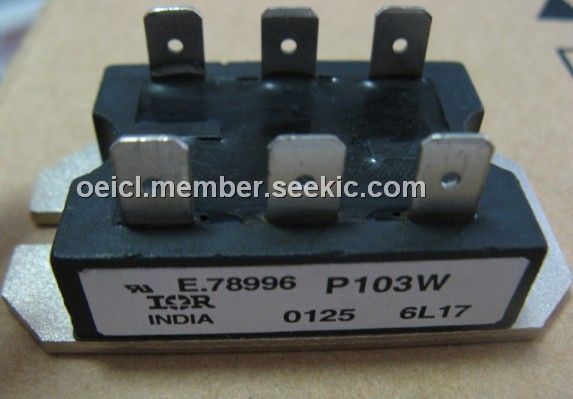

 P103W |
|
SCR HY-BRIDGE 800V 25A PACE-PAK |
Data Sheet |
|
|
||||||
