Product Summary

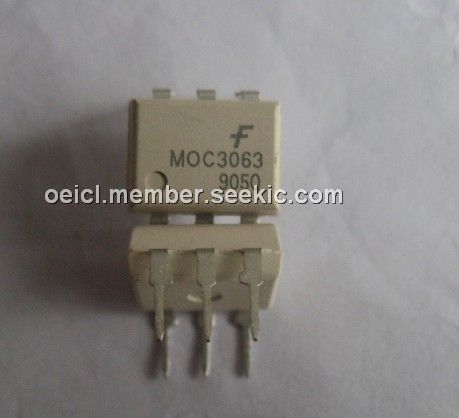

The MOC3063 is a 6pin DIP zero-cross optoisolators triac driver.
Parametrics
Absolute maximum ratings: (1)Forward Current:50mA ; (2)Reverse Voltage:6V ; (3)Power Dissipation:120mW ; (4)Off-State Output Terminal Voltage:600V ; (5)Peak Repetitive Surge Current:1A ; (6)Collector Power Dissipation:150mW; (7)Total Power Dissipation:250mW ; (8)Isolation Voltage:5,000Vrms ; (9)Ambient Operating Temperature Range:-40℃ to +100℃; (10)Storage Temperature Range:-55℃ to +150℃; (11)Soldering Temperature:260℃.
Features
Features: (1)Isolation voltage between input and output Viso : 5,000Vrms ; (2)6pin DIP zero-cross optoisolators triac driver output ; (3)High repetitive peak off-state voltage VDRM : Min. 600V ; (4)High critical rate of rise of off-state voltage ( dv/dt : MIN. 1000V / μs ) ; (5)UL approved ( No. E113898 ) ; (6)CSA approved ( No. CA91533-1 ) ; (7)FIMKO approved ( No. 15469 ) ; (8)NEMKO approved ( No. P00102123 ) ; (9)DEMKO approved ( No. 309968-01 ) ; (10)SEMKO approved ( No. 0032019/01-11 ) ; (11)VDE approved (No. 094722 ) ; (12)RoHS compliance.

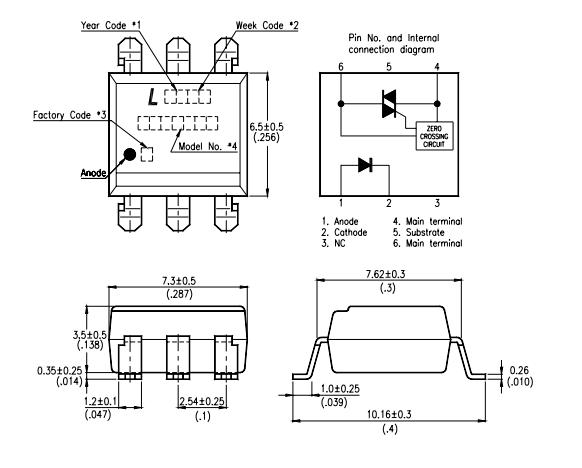

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MOC3063FM |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 6Pin600V Optocoupler Zero Cross Triac Dr |
Data Sheet |
Negotiable |
|
||||||||||||
|
MOC3063FR2M |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 6Pin600V Optocoupler Zero Cross Triac Dr |
Data Sheet |
Negotiable |
|
||||||||||||
|
MOC3063FR2VM |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 6Pin600V Optocoupler Zero Cross Triac Dr |
Data Sheet |
Negotiable |
|
||||||||||||
|
MOC3063FVM |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 6Pin600V Optocoupler Zero Cross Triac Dr |
Data Sheet |
Negotiable |
|
||||||||||||
|
MOC3063M |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 600V Optocoupler Triac Driver ZC |
Data Sheet |
|
|
||||||||||||
 |
MOC3063-M |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
MOC3063S |
Lite-On |
Triac & SCR Output Optocouplers Optocoupler TRIAC |
Data Sheet |
|
|
||||||||||||
|
MOC3063SR2M |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 6Pin600V Optocoupler Zero Cross Triac Dr |
Data Sheet |
|
|
||||||||||||
