Product Summary

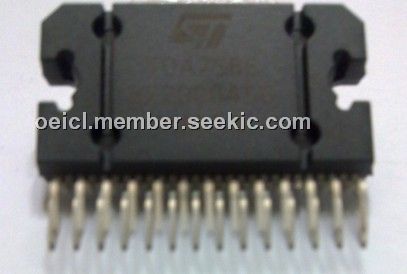

The TDA7565 is a new BCD technology quad bridge type of car radio amplifier in Flexiwatt27 package specially intended for car radio applications. Thanks to the DMOS output stage the TDA7565 has a very low distortion allowing a clear powerful sound. The built-in voltage converter control block assures a very high output power with an extremely low number of added components. The dissipated power of the TDA7565 under average listening condition is aligned to the conventional solutions (4 * 40 W).
Parametrics
TDA7565 absolute maximum ratings: (1)Operating supply voltage, converter off:18 V; (2)Operating supply voltage, converter on:25 V; (3)DC supply voltage:28 V; (4)Peak supply voltage (for t = 50 ms):50 V; (5)CK pin voltage:6 V; (6)Data pin voltage:6 V; (7)Output peak current (not repetitive t = 100 μs):8 A; (8)Output peak current (repetitive f > 10 Hz):6 A; (9)Power dissipation Tcase = 70℃:80 W; (10)Storage and junction temperature:-55℃ to 150℃.
Features
TDA7565 features: (1)Hardware mute function; (2)Full fault protection; (3)DC offset detection; (4)Four independent short circuit protection; (5)Clipping detector with selectable threshold(1 % / 10 %) via I2C bus; (6)Multipower BCD technology; (7)DMOS power output; (8)Non-switching high efficiency amplifier; (9)Switching high efficiency voltage converter; (10)High output power capability 4*60W EIAJ/4Ω; (11)St-by; (12)Independent front/rear soft play/mute; (13)Selectable gain 26dB - 12dB (for low noise line output function); (14)High efficiency enable/disable; (15)Voltage converter enable/disable; (16)Regulated voltage selection; (17)Switching frequency selection.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TDA7565 |
STMicroelectronics |
Audio Amplifiers Quad Power Amplifier Built-in Volt Conv |
Data Sheet |
|
|
|||||||||||||
