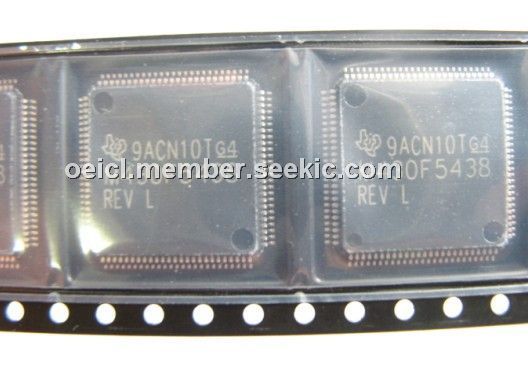

Product Summary

The MSP430F5438IPZ is a mixed signal microcontroller. It features different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The device also features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. Applications of the MSP430F5438IPZ include analog and digital sensor systems, digital motor control, remote controls, thermostats, digital timers, hand-held meters, etc.

Parametrics

MSP430F5438IPZ absolute maximum ratings: (1)Voltage applied at VCC to VSS: -0.3 V to 4.1 V; (2)Voltage applied to any pin (excluding VCORE): -0.3 V to VCC + 0.3 V; (3)Diode current at any device pin: ±2 mA; (4)Storage temperature range, Tstg Unprogrammed device: -55℃ to 150℃; Programmed device: -40℃ to 105℃.

Features

MSP430F5438IPZ features: (1)16-Bit Timer0_A5 With Five Capture/Compare Registers; (2)16-Bit Timer1_A3 With Three Capture/Compare Registers; (3)16-Bit Timer_B7 With Seven Capture/Compare Shadow Registers; (4)Hardware Multiplier Supporting 32-Bit Operations; (5)Serial Onboard Programming, No External Programming Voltage Needed; (6)Three Channel Internal DMA; (7)Basic Timer With Real Time Clock Feature.

Diagrams

MSP430F5438IPZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MSP430F5438IPZ
MSP430F5438IPZ

Texas Instruments

16-bit Microcontrollers (MCU) 16Bit Ultra-Low-Pwr Microcontroller

Data Sheet

0-1: $5.92
1-10: $4.93
10-25: $3.95
25-50: $3.60
MSP430F5438IPZR
MSP430F5438IPZR

Texas Instruments

16-bit Microcontrollers (MCU) 16Bit Ultra-Low-Pwr Microcontroller

Data Sheet

0-1: $5.92
1-10: $4.93
10-25: $3.95
25-50: $3.25
