Product Summary

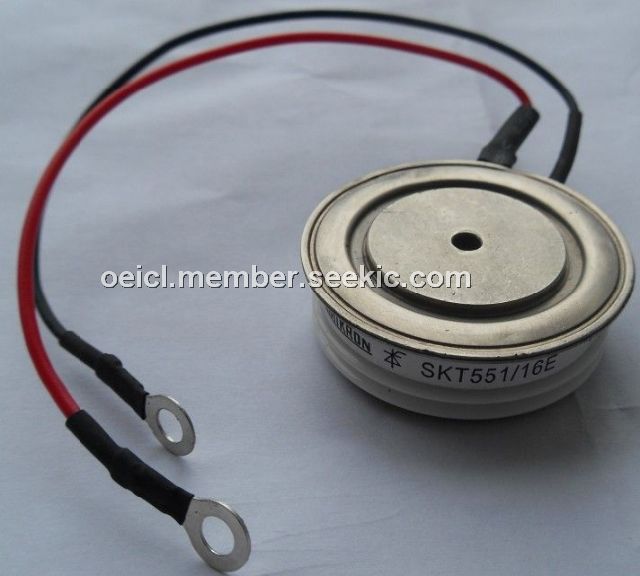

The SKT55116E is a Thyristor. The applications of the SKT55116E include DC motor control, controlled rectifier, AC controllers, recommended snubber network.
Parametrics
SKT55116E absolute maximum ratings: (1)ITAV: 391/550 A; (2)ID: 390/550 A; (3)IRMS: 430 A; (4)ITSM: 9000A; (5)i2t: 405000 A2s; (6)VT: 1.65 V max; (7)VT(TO): 0.925 V max; (8)rT: 0.45 m max; (9)IDD; IRD: 50 mA max; (10)tgd: 1 μs; (11)tgr: 1 μs.
Features
SKT55116E features: (1)hermetic metal case with ceramic insulator; (2)capsule package for double sided cooling; (3)shallow design with single sided cooling; (4)international standard case; (5)off-state and reverse voltages up to 1800 V; (6)amplifying gate.

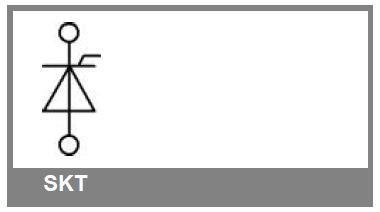

Diagrams
