112CNQ030APBF

Schottky rectifier module, 110A, 30V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $10.00~15.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $10.00~15.00

PartNumber:: 112CNQ030APBF

Brand:: Vishay Siliconix - vishay | Pack: DIP | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. LIN HAIBIN's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-08

From Other Seller

Part Number:112CNQ030APBF
US $10.00 - 15.00
SPEAKER 8 OHM .3W

US $1.54 - 2.51 / Piece
(0) Remove
BUZZER ELEMENT PIEZO 4.6KHZ

US $1.04 - 1.75 / Piece
(0) Remove
Quantity:

piece

Product Summary

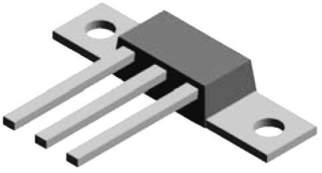

The 112CNQ030APBF is a center tap Schottky rectifier module. It has been optimized for very low forward voltage drop, with moderate leakage. The proprietary barrier technology allows for reliable operation up to 150℃ junction temperature. Typical applications of the 112CNQ030APBF are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection.

Parametrics

112CNQ030APBF absolute maximum ratings: (1)IF(AV) Rectangular waveform: 110 A; (2)VRRM: 30 V; (3)IFSM @ tp = 5 μs sine: 5100 A; (4)VF @ 55Apk, TJ = 125℃ (per leg): 0.39 V; (5)TJ range: - 55 to 150℃.

Features

112CNQ030APBF features: (1)150℃ TJ operation; (2)Center tap module; (3)Very low forward voltage drop; (4)High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance; (5)High frequency operation; (6)Guard ring for enhanced ruggedness and long term reliability; (7)Low profile, small footprint, high current package; (8)New fully transfer-mold low profile, small footprint, high current package; (9)Through-hole versions are currently available for use in Lead-Free applications (PbF suffix).
