Product Summary

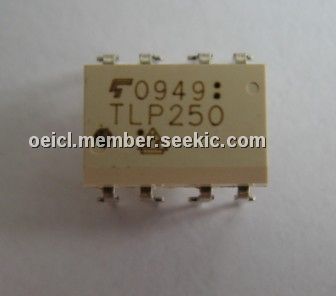

The TLP250 is a transistor inverter for air conditionor. It consists of a GaAlAs light emitting diode and an integrated photodetector. This unit is 8-lead DIP package. The TLP250 is suitable for gate driving circuit of IGBT or power MOS FET.

Parametrics

TLP250 absolute maximum ratings: (1)Forward current IF: 20 mA; (2)Forward current derating (Ta ≥ 70℃) △IF / △Ta: -0.36 mA / ℃; (3)Peak transient forward curent IFPT: 1 A; (4)Reverse voltage VR: 5 V; (5)Junction temperature Tj: 125 ℃; (6)Operating frequency f: 25 kHz; (7)Operating temperature range Topr: -20~85 ℃; (8)Storage temperature range Tstg: -55~125 ℃; (9)Lead soldering temperature (10 s) Tsol: 260 ℃; (10)Isolation voltage (AC, 1 min., R.H.≤ 60%) BVS: 2500 Vrms.

Features

TLP250 features: (1)Input threshold current: IF=5mA(max.); (2)Supply current (ICC): 11mA(max.); (3)Supply voltage (VCC): 10.35V; (4)Output current (IO): ±1.5A (max.); (5)Switching time (tpLH/tpHL): 1.5μs(max.); (6)Isolation voltage: 2500Vrms(min.); (7)UL recognized: UL1577, file No.E67349; (8)Option (D4) type VDE approved: DIN VDE0884/06.92,certificate No.76823; Maximum operating insulation voltage: 630VPK; Highest permissible over voltage: 4000VPK.

Diagrams

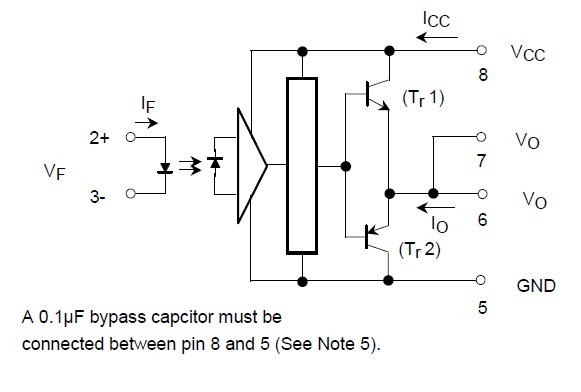

TLP250 schematic

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TLP250(F)
TLP250(F)

Toshiba

Logic Output Optocouplers 2500Vrms 0.15 High Speed

Data Sheet

0-1: $1.13
1-10: $0.90
10-100: $0.67
100-250: $0.63
TLP250(INV)
TLP250(INV)

Other


Data Sheet

Negotiable
TLP250(LF1,F)
TLP250(LF1,F)


PHOTOCOUPLER HS TRANS OUT 8-SMD

Data Sheet

Negotiable
TLP250(TP1)
TLP250(TP1)


PHOTOCOUPLER HS TRANS OUT 8-SMD

Data Sheet

Negotiable
TLP250(TP1,F)
TLP250(TP1,F)

Toshiba

Logic Output Optocouplers 2500Vrms 0.15 High Speed

Data Sheet

0-1: $1.20
1-10: $0.96
10-100: $0.72
100-250: $0.67
TLP250F
TLP250F

Other


Data Sheet

Negotiable
