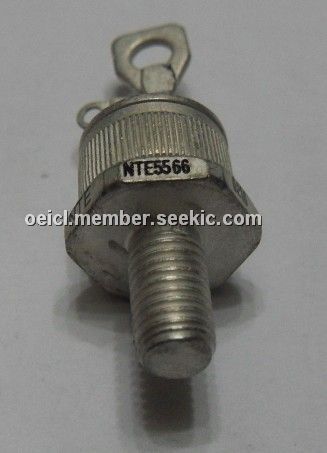

The NTE5566 is a silicon controlled rectifier in a TO–48 isolated stud TO–48 type package designed for industrial and consumer application such as power supply, battery charger, temperature, motor, light and welder control.
Parametrics
NTE5566 absolute maximum ratings: (1)Repetitive Peak Off–State Voltage & Reverse Voltage (TJ = +100℃), VDRM, VRRM: 600V; (2)RMS On–State Current (TC = +75℃), IT(RMS): 35A; (3)Peak Surge (Non–Repetitive) On–State Current, ITSM: 300A; (4)Peak Gate–Trigger Current (3μs Max), IGTM: 20; (5)Peak Gate–Power Dissipation (IGT ≤ for 3μs Max), PGM: 20W; (6)Average Gate Power Dissipation, PG(AV): 20W; (7)Operating Temperature Range, Toper: –40° to +150℃; (8)Storage Temperature Range, Tstg: –40° to +150℃; (9)Typical Thermal Resistance, Junction–to–Case, RthJC: 1.6/W.
Features
NTE5566 features: (1)Current Rating: 35.0 A; (2)Voltage Rating (DC): 600 V; (3)Case / Package: TO-48; (4)Mounting Type: Through Hole; (5)RoHS: Non-Compliant.
