Product Summary
The 6MBI75S-120-02 is an IGBT module. The applications of it are Inverter for motor drive, AC and DC servo drive amplifier, Uninterruptible power supply, Industrial machines, such as welding machines.
Parametrics
6MBI75S-120-02 absolute maximum ratings: (1)Collector-Emitter voltage:1200V; (2)Gate-Emitter voltage:±20V; (3)Collector current: IC:100A or 75A, IC pulse:200A or 150A, -IC:75A, -IC pulse:150A; (4)Max. power dissipation:520W; (5)Operating temperature:+150℃; (6)Storage temperature:-40℃ to +125℃; (7)Isolation voltage:AC2500V; (8)Screw torque:3.5N.m.
Features
6MBI75S-120-02 features: (1)Compact package; (2)P.C.board mount; (3)Low VCE(sat).

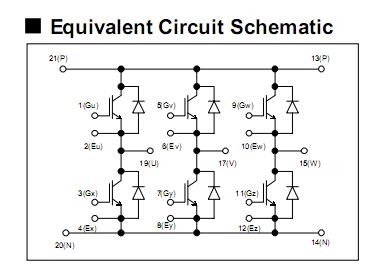

Diagrams
 |
