Product Summary

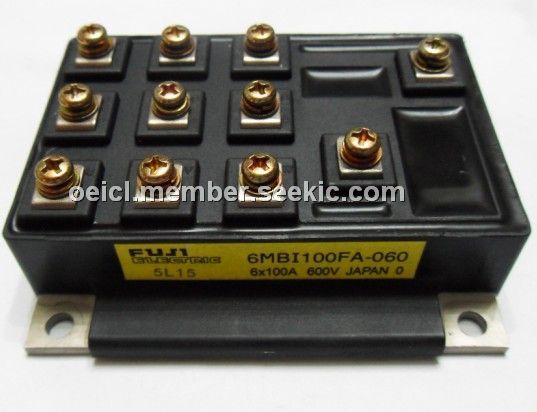

The 6MBI100FA-060 is an IGBT module. The applications of it are inverter for motor drive, AC.DC servo drive amplifier, uniterruptible power supply, industrial machines, such as welding machines.
Parametrics
6MBI100FA-060 absolute maximum ratings: (1)VCES:600V; (2)VGES:±20V; (3)IC:100A; (4)ICpulse:200A; (5)-IC:100A; (6)-ICpulse:200A; (7)Pc:360W; (8)Tj:+150℃; (9)Tstg:-40℃ to +125℃; (10)m:450g; (11)Visol:2500V.
Features
6MBI100FA-060 features: (1)low saturation voltage; (2)voltage drive; (3)variety of power capacity series.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 6MBI100FA-060 |
Other |
|
Data Sheet |
Negotiable |
|
||||
