Product Summary

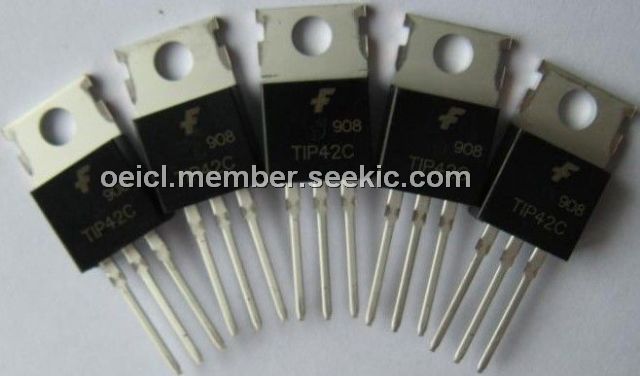

The TIP42C is a silicon Epitaxial-Base NPN power transistor mounted in Jedec TO-220 plastic package. It is intented for use in medium power linear and switching applications.
Parametrics
TIP42C maximum ratings: (1)VCBO Collector-Base Voltage (IE = 0): 100 V; (2)VCEO Collector-Emitter Voltage (IB = 0): 100 V; (3)VEBO Emitter-Base Voltage (IC = 0): 5 V; (4)IC Collector Current: 6 A; (5)ICM Collector Peak Current: 10 A; (6)IB Base Current: 3 A; (7)Ptot Total Dissipation at Tcase ≤ 25 ℃: 65W; (8)Tstg Storage Temperature: -65 to 150 ℃; (9)Tj Max. Operating Junction Temperature: 150 ℃.
Features
TIP42C features: (1)complementary PNP - NPN device.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TIP42CE3 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
TIP42CG |
ON Semiconductor |
Transistors Bipolar (BJT) 6A 100V 65W PNP |
Data Sheet |
|
|
||||||||||||
|
TIP42CPTU |
Fairchild Semiconductor |
Transistors Bipolar (BJT) |
Data Sheet |
Negotiable |
|
||||||||||||
|
TIP42C-S |
Bourns |
Transistors Bipolar (BJT) 100V 6A PNP |
Data Sheet |
|
|
||||||||||||
|
TIP42CTU |
Fairchild Semiconductor |
Transistors Bipolar (BJT) PNP Epitaxial Sil |
Data Sheet |
|
|
||||||||||||
|
TIP42CN |
STMicroelectronics |
Transistors Bipolar (BJT) PNP 100 Volt 6 Amp |
Data Sheet |
Negotiable |
|
||||||||||||
|
TIP42C-BP |
Micro Commercial Components (MCC) |
Transistors Bipolar (BJT) PNP -100V -6A 65W |
Data Sheet |
|
|
||||||||||||
|
TIP42C |
STMicroelectronics |
Transistors Bipolar (BJT) PNP Gen Pur Power |
Data Sheet |
|
|
||||||||||||
