Product Summary

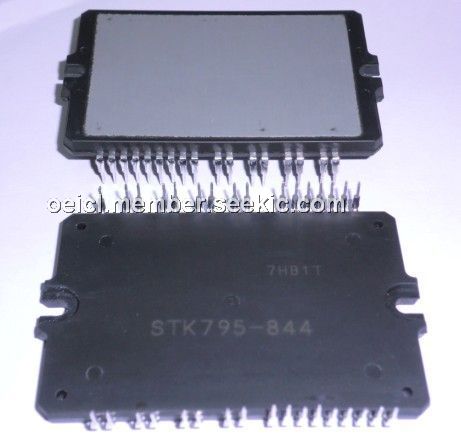

The STK795-844 is a chopper type voltage regulator.
Parametrics
STK795-844 absolute maximum ratings: (1)maximum DC input voltage, Vin(DC) max: 40V; (2)maximum output current, IO max: 3A; (3)operating case temperature, TC: 105℃; (4)junction temperature, Tj: 150℃; (5)storage temperature, Tstg: -30 to 105℃.
Features
STK795-844 features: (1)self-oscillation type chopper regulator power IC using original IMST substrate; (2)5V chopper IC; (3)possilbe to provide a 5V output power supply circuit with high efficiency; (4)since the input voltage range is wide, no more than one rectifying/smoothing circuit is required to provide a multi-output power supply circuit which also delivers 12V or 24V output; (5)functional trimming is used to set 5V output with high accuracy; (6)cutoff function to cut off output voltage by external signal; (7)contains a transistor for overcurrent protector and possible to set the protection level externally.

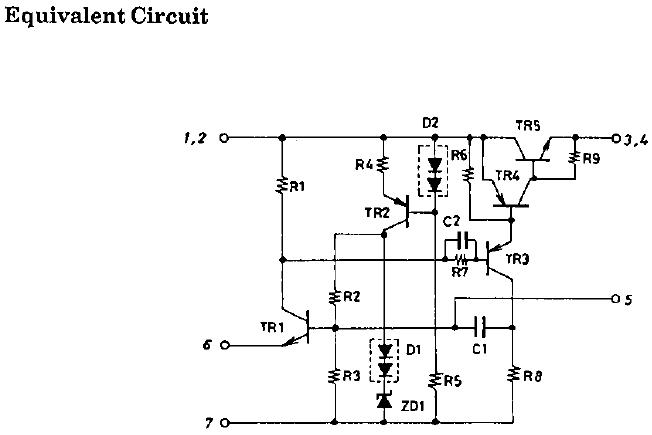

Diagrams
 |
