Product Summary

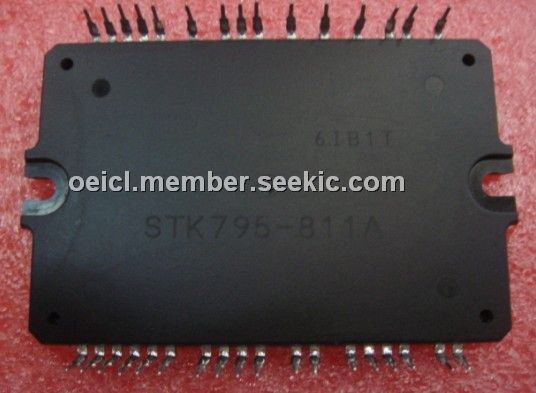

The STK795-811A is a chopper type voltage regulator.
Parametrics
STK795-811A absolute maximum ratings: (1)maximum DC input voltage, Vin(DC): 40V max; (2)maximum output current, IO: 3A max; (3)operating case temperature, Tc: 105℃; (4)junction temperature, Tj: 150℃; (5)storage temperature, Tstg: -30 to +105℃.
Features
STK795-811A features: (1)self-oscillation type chopper regulator power IC using original IMST substrate; (2)The STK759, being a 5V chopper IC, is more advantageous in the following points as compared with series regulator ICs; (3)functional trimming is used to set 5V output with high accuracy; (4)cutoff function to cut off output voltage by external signal; (5)contains a transistor for overcurrent protector and possible to set the protection level externally.
Diagrams
 |
