Product Summary

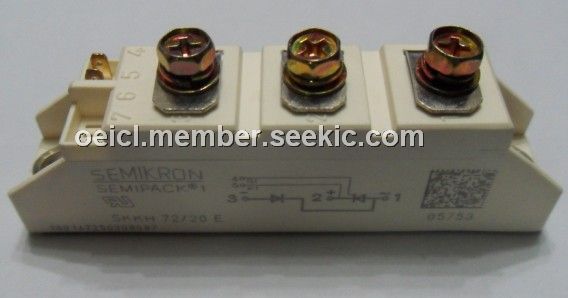

The SKKH72-20E is a Thyristor / Diode Module. The applications of it are DC motor controls, AC motor soft starters, temperature control, professional light dimming.
Parametrics
SKKH72-20E general specifications: (1)IRMS:155A/3*115A; (2)ITAV:70A; (3)VT:max.1.9V; (4)VT(TO):max.0.9V; (5)I2T:max.3.5mΩ; (6)IDD;IRD:30mA; (7)IDD;IRD:max.20mA; (8)tgd:1us; (9)tgr:1us; (10)tq:80us; (11)IH:150/250mA; (12)IL:300/600mA.
Features
SKKH72-20E features: (1)heat transfer through aluminium oxide ceramic isolated metal baseplate; (2)hard soldered joints for high reliability; (3)UL recognized, file no. E63532.
