Product Summary

The SCA1000-D10 is an accelerometer. The applications of the SCA1000-D10 include 2-axis acceleration measurements, 2-axis platform leveling, Inclination based position measurement, 360 ° vertical orientation measurement.

Parametrics

SCA1000-D10 absolute maximum ratings: (1)Acceleration (powered or non powered): 20 000 g; (2)Supply voltage: -0.3 V to +5.5 V; (3)Voltage at input/output pins: -0.3 V to (Vdd +0.3 V); (4)Storage temperature range: -55 to +125℃.

Features

SCA1000-D10 features: (1)2-axis measurement: SCA1000 for X - Y measurement and SCA1020 for Z - Y measurement; (2)Available range ±1.7 g; (3)Interchangeable with SCA610/SCA620 (see interchangeability; (4)drawing below); (5)Over damped sensing element to control frequency response; (6)SMD DIL-12 lead-free component; (7)Compatible with lead-free refl ow soldering process; (8)Advanced internal and external connection failure detection; (9)Digitally activated electrostatic self-test; (10)Continuous memory parity check; (11)Single +5 V supply; two ratiometric analog voltage outputs; (12)Serial Peripheral Interface (SPI) compatible digital output (11 bits); (13)Internal temperature sensor, accessible via SPI.

Diagrams

SCA1000-D10 block diagram

SCA1000-D01
SCA1000-D01

ACCELEROMETER DL 1.7G DIL12 SMD
Data Sheet
Negotiable
SCA1000-N1000070
SCA1000-N1000070

ACCELEROMETER DUAL 4G DIL12
Data Sheet
0-1: $51.46
1-10: $49.01
10-25: $46.68
25-50: $44.46
SCA100T
SCA100T
Other

Data Sheet
Negotiable

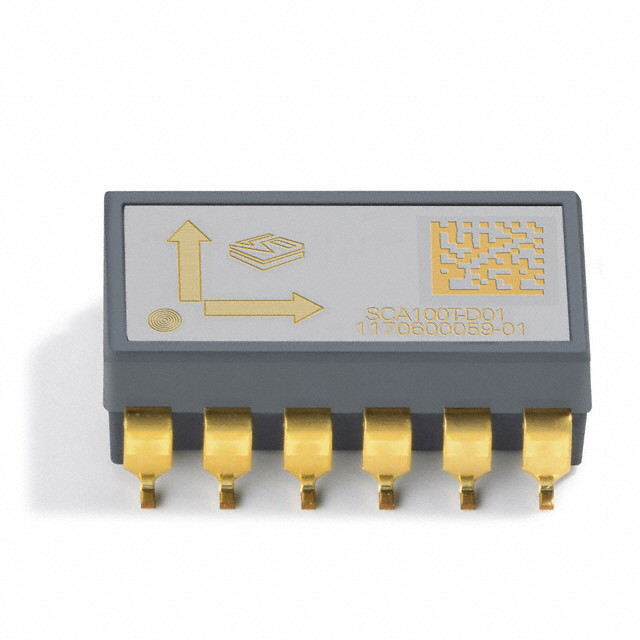

SCA100T-D01
SCA100T-D01

INCLINOMETER DUAL 0.5G DIL12 SMD
Data Sheet
0-1: $38.07
1-10: $36.26
10-25: $34.53
25-50: $32.89
SCA100T-D01-1
SCA100T-D01-1
Murata
Vibration & Tilt Sensors 2-Axis Inclinometer Analog
Data Sheet
0-1: $43.31
1-10: $34.64
10-25: $31.49
25-100: $28.63
SCA100T-D02
SCA100T-D02

INCLINOMETER DUAL 1G DIL12 SMD
Data Sheet
0-1: $38.07
1-10: $36.26
10-25: $34.53
25-50: $32.89
