Product Summary
The PALCE22V10H-15PC is an advanced PAL device built with zero-power, high-speed, electrically erasable CMOS technology. It provides user-programmable logic for replacing conventional SSI/MSI gates and flip-flops at a reduced chip count. The PALCE22V10H-15PC provides zero standby power and high speed. At 30 μA maximum standby current, it allows battery-powered operation for an extended period.
Parametrics
PALCE22V10H-15PC maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -55℃ to +125℃; (3)Supply Voltage with Respect to Ground: -0.5 V to +7.0 V; (4)DC Input Voltage: -0.5 V to VCC + 1.0 V; (5)DC Output or I/O Pin Voltage: -0.5 V to VCC + 1.0 V; (6)Static Discharge Voltage: 2001 V; (7)Latchup Current (TA = 0℃ to +75℃):100 mA.
Features
PALCE22V10H-15PC features: (1)As fast as 5-ns propagation delay and 142.8 MHz fMAX(external); (2)Low-power EE CMOS; (3)Peripheral Component Interconnect (PCI) compliant (-5/-7/-10); (4)Global asynchronous reset and synchronous preset for initialization; (5)Power-up reset for initialization and register preload for testability; (6)Extensive third-party software and programmer support; (7)24-pin SKINNY DIP, 24-pin SOIC, and 28-pin PLCC; (8)5-ns and 7.5-ns versions utilize split leadframes for improved performance.

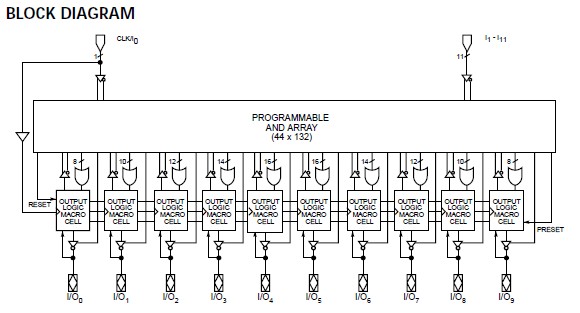

Diagrams
 |
