Product Summary

The M27C4001-10F1 is a 4 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for microprocessor systems requiring large programs and is organised as 524,288 by 8 bits. For applications where the content is programmed only one time and erasure is not required, the M27C4001-10F1 is offered in PDIP32, PLCC32 and TSOP32 (8 × 20 mm) packages.

Parametrics

M27C4001-10F1 absolute maximum ratings: (1)TA Ambient Operating Temperature: -40 to 125 ℃; (2)TBIAS Temperature Under Bias: -50 to 125 ℃; (3)TSTG Storage Temperature: -65 to 150 ℃; (4)VIO Input or Output Voltage (except A9): -2 to 7 V; (5)VCC Supply Voltage: -2 to 7 V; (6)VA9 A9 Voltage: -2 to 13.5 V; (7)VPP Program Supply Voltage: -2 to 14 V.

Features

M27C4001-10F1 features: (1)5V±10% supply voltage in Read operation; (2)Access time: 35ns; (3)Low power consumption: Active Current 30mA at 5MHz; Standby Current 100μA; (4)Programming voltage: 12.75V±0.25V; (5)Programming time: 100μs/Word; (6)Electronic signature: Manufacturer Code: 20h; Device Code: 41h; (7)Packages: ECOPACK compliant versions.

Diagrams

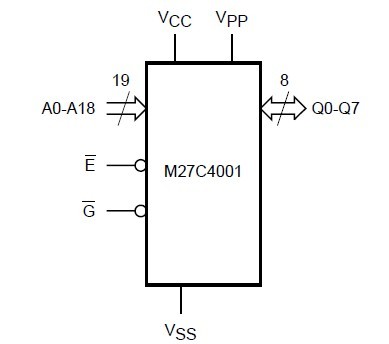

M27C4001-10F1 logic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

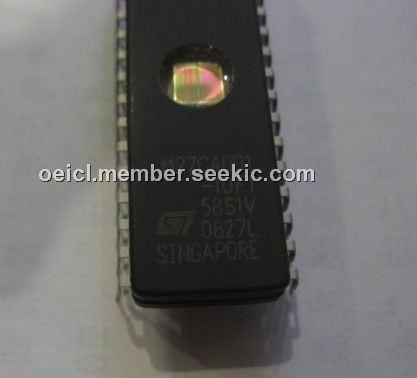

M27C4001-10F1
M27C4001-10F1

STMicroelectronics

EPROM 4M (512Kx8) 100ns

Data Sheet

Negotiable
