Product Summary
The NL10276AC24-02 is a TFT (thin film transistor) active matrix color liquid crystal display (LCD) comprising amorphous silicon TFT attached to each signal electrode, a driving circuit and a backlight. The NL10276AC24-02 has a built-in backlight/inverter. The applications of the NL10276AC24-02 are Engineering workstation (EWS), Personal computer (PC), Word processor, Display terminals for control system, New media, Monitors for process controller.
Parametrics
NL10276AC24-02 absolute maximum ratings: (1)Supply voltage: VCC:-0.3V to +4.6V, VDD:–0.3 to +14 V, VDDB:–0.3 to +14 V; (2)Logic input voltage VIN1:–0.3 to +5.5 V; (3)R, G, B input voltage VIN2:–4.0 to +4.0 V; (4)CLK input voltage VIN3:–7.0 to +7.0 V; (5)Storage temp. Tst:–20 to +60 ℃; (6)Operating temp. Top:0 to +50 ℃.
Features
NL10276AC24-02 features: (1)Analog RGB interface; (2)Vertical screen expansion (Multi-scan); (3)High luminous / Low reflection; (4)Incorporated edge-light type backlight with inverter.

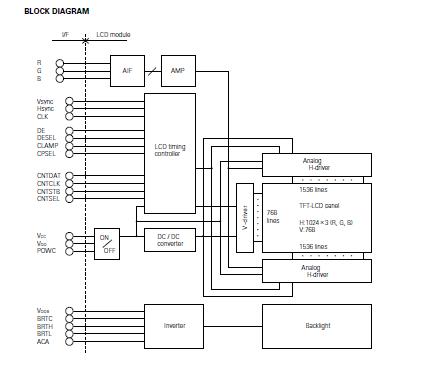

Diagrams
 |
