Product Summary

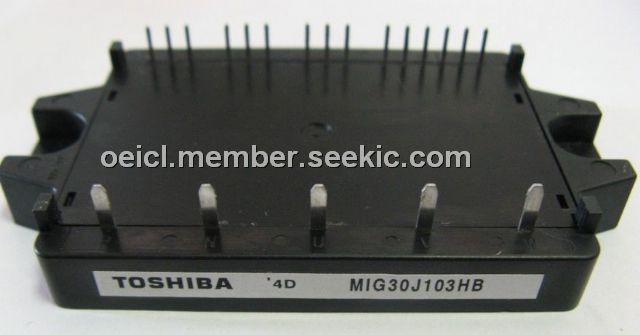

The MIG30J103HB is a TOSHIBA intellgent power module. The applications of the MIG30J103HB include high power switching applicantions and motors control applicantions.

Parametrics

MIG30J103HB absolute maximum ratings: (1)supply voltage: 400 V; (2)collector-emitter voltage: 600 V; (3)collector current(DC): 30 A; (4)collector power dissipation: 83 W; (5)junction temperature: 150℃.

Features

MIG30J103HB features: (1)intelligent power module that include IGBT drive circuits, overcurrent, undervoltage lockout, and overtemperature protection; (2)the electrodes are isolated from case; (3)high speed type IGBT: VCE(sat)=2.7V max, toff=2.0μs max, trr=0.25μs max; (4)outline: TOSHIBA 2-99E1A; (5)weight: 80g.

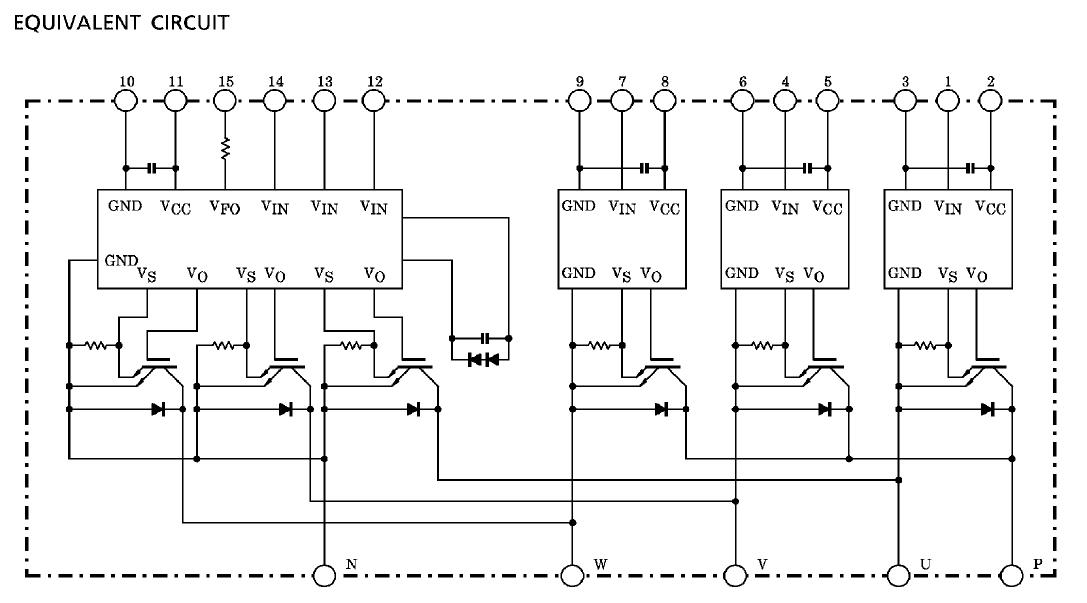

Diagrams
