Product Summary

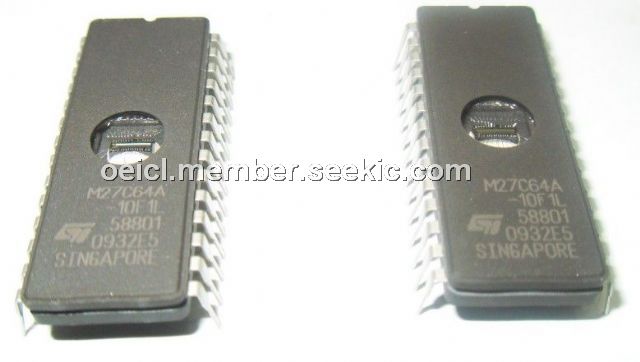

The M27C64A-10F1 is a 64Kbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for microprocessor systems requiring large programs and is organized as 8,192 by 8 bits. The M27C64A-10F1 (window ceramic frit-seal package) has transparent lid which allows the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure. For applications of the M27C64A-10F1 where the content is programmed only on time and erasure is not required, the M27C64A-10F1 is offered in PLCC32 package.
Parametrics
M27C64A-10F1 absolute maximum ratings: (1)TA Ambient Operating Temperature: –40 to 125 ℃; (2)TBIAS Temperature Under Bias: –50 to 125 ℃; (3)TSTG Storage Temperature: –65 to 150 ℃; (4)VIO Input or Output Voltage: –2 to 7 V; (5)VCC Supply Voltage: –2 to 7 V; (6)VA9 A9 Voltage: –2 to 13.5 V; (7)VPP Program Supply Voltage: –2 to 14 V.
Features
M27C64A-10F1 features: (1)5V ± 10% supply voltage in Read operation; (2)Access time: 100ns; (3)Low power "CMOS" consumption:; (4)Programming voltage: 12.5V ± 0.25V; (5)High speed programming(less than 1 minute); (6)Electronic signature. Manufacturer Code: 9Bh. Device Code: 08h; (7)ECOPACKR packages available.

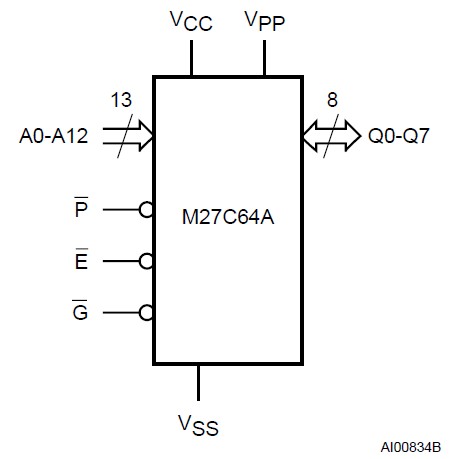

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M27C64A-10F1 |
STMicroelectronics |
EPROM 64K (8Kx8) 100ns |
Data Sheet |
Negotiable |
|
||||
