Product Summary

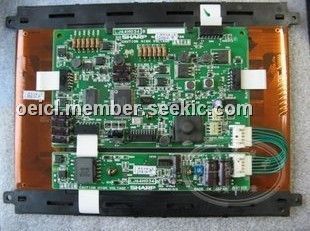

The LJ089MB2S01 is an EL Display Module.
Parametrics
LJ089MB2S01 absolute maximum ratings: (1)Supply voltage: +5 to +12 V; (2)Power consumption: 11 W; (3)Operating temperature: -5 to +55℃; (4)Storage temperature: -40 to +80℃; (5)Survival temperature: -20 to +65℃.
Features
LJ089MB2S01 features: (1)23 cm [8.9"] display size; (2) Wide viewing angle (Horizontal: 160°, Vertical: 160°).

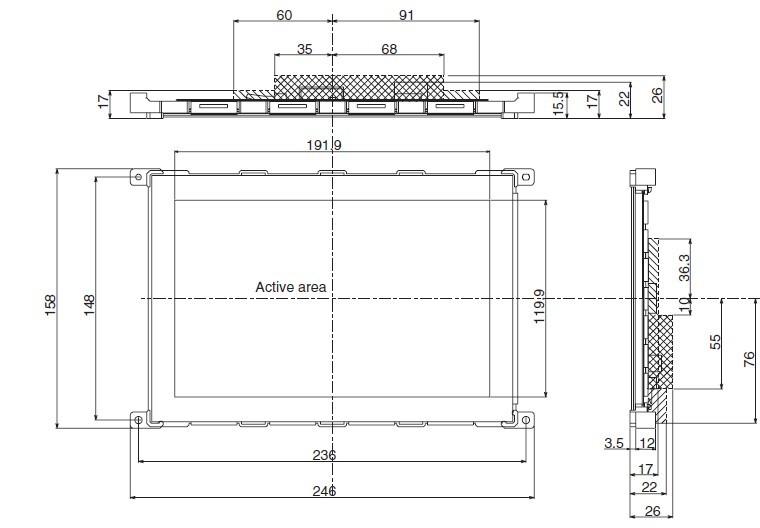

Diagrams
