Product Summary

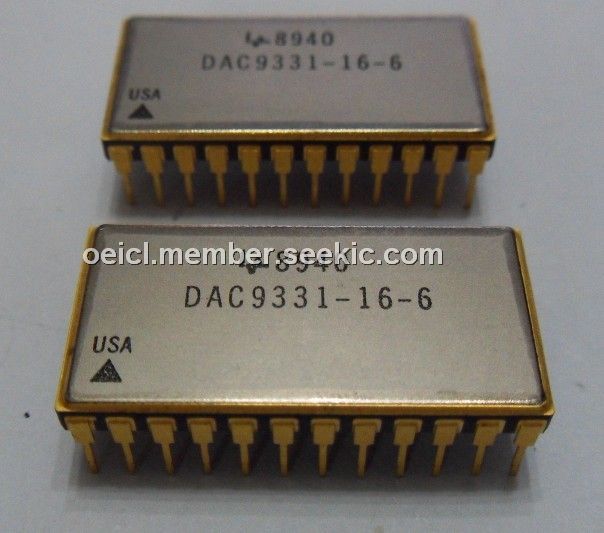

The DAC9331-16-6 is a true 16-bit D/A converter. The DAC9331-16-6 is manufactured with advanced proprietary monolithic device and proven performance packaging technique. A single, unique monlithic chip contains switches, storage registers and other electronics for high resolution and low linearity erroy. The DAC9331-16-6 offers exceptional performance/cost ratio.

Parametrics

DAC9331-16-6 absolute maximum ratings: (1)gain accuracy: 0.1%; (2)offset: 50μV; (3)operating temperature range: 0 to 70℃; (4)storage temperature range: -55 to 85℃; (5)power dissipation: 60mW; (6)volage range @ current: +15V nom; +11.5V to +15.5V @ 1.5mA.

Features

DAC9331-16-6 features: (1)up to 16 bit linearity; (2)two chip construction; (3)input registers; (4)low power; (5)ceramic 24-pin DIP; (6)2 and 4-quadrant multiplication; (7)single-supply operation; (8)low-cost.

Diagrams

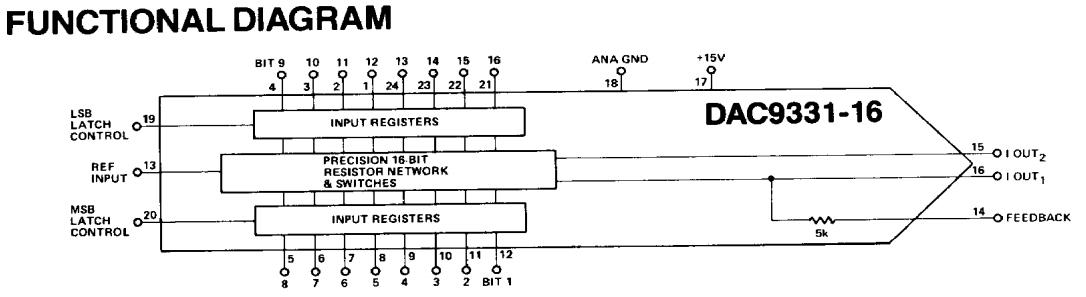

DAC9331-16-6 functional diagram

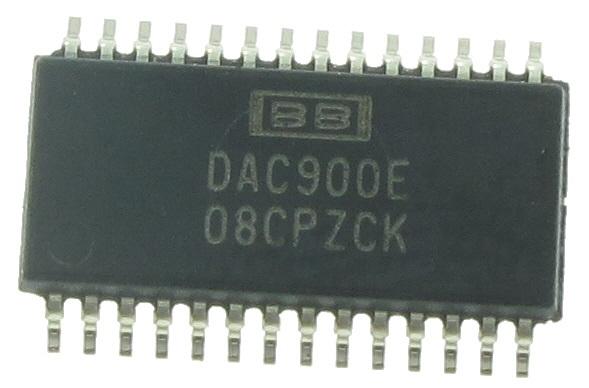

DAC900E
