Product Summary

The KBPC2510 is a 15, 25, 35A high current bridge rectifier.

Parametrics

KBPC2510 maximum ratings: (1)Forward Voltage Drop VFM 1.2 V; (2)Peark Reverse Current @TC = 25℃ At Rated DC Blocking Voltage IRM: 10 μA; (3)Average Rectifier Output Current @TC = 60℃ IO: 25 A.

Features

KBPC2510 features: (1)Diffused Junction; (2)Low Reverse Leakage Current; (3)Low Power Loss, High Efficiency; (4)Electrically Isolated Metal Case for ; (5)Maximum Heat Dissipation; (6)Case to Terminal Isolation Voltage 2500V; (7)UL Recognized File # E157705.

Diagrams

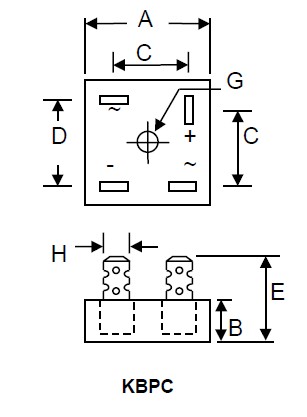

KBPC2510  pinout

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
KBPC2510
KBPC2510

Other


Data Sheet

Negotiable
KBPC2510FW
KBPC2510FW

Other


Data Sheet

Negotiable
KBPC2510-G
KBPC2510-G


RECTIFIER BRIDGE 25A 1000V KBPC

Data Sheet

0-1000: $0.70
KBPC2510W-G
KBPC2510W-G


RECTIFIER BRIDGE 25A 1000V KBPCW

Data Sheet

0-1000: $0.70
KBPC2510W
KBPC2510W

Other


Data Sheet

Negotiable
