Product Summary

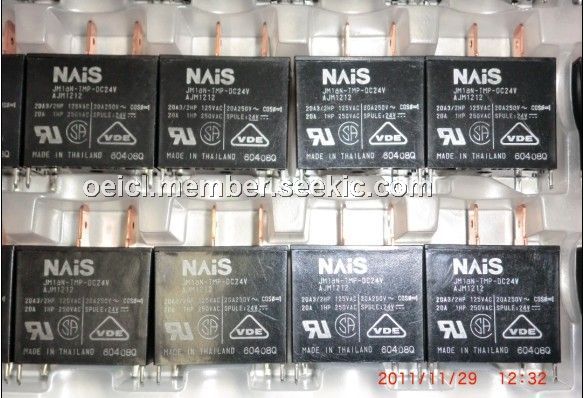

The JM1AN-TMP-DC24V is a 20A power relay. It is ideal for compressor and motor control.
Parametrics
JM1AN-TMP-DC24V absolute maximum ratings: (1)Nominal coil voltage: 24V DC; (2)Pick-up voltage (at 20℃ 68°F): 70%V or less of nominal voltage (Initial); (3)Drop-out voltage (at 20℃ 68°F): 10%V or more of nominal voltage (Initial); (4)Nominal operating current [±10%] (at 20℃ 68°F): 37.5 mA; (5)Coil resistance [±10%] (at 20℃ 68°F): 640 Ω; (6)Nominal operating power: 900mW; (7)Max. applied voltage (at 60℃ 140°F): 110%V of nominal voltage.
Features
JM1AN-TMP-DC24V features: (1)Compact, high-capacity, and resistant to inductive loads; (2)Excellent contact welding resistance; (3)High breakdown voltage and surge resistant relay; (4)Resistant to external force; (5)Flux resistance mechanism; (6)Conforms to the various safety standards.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 JM1AN-TMP-DC24V |
Panasonic Electric Works |
General Purpose / Industrial Relays 20A 24VDC SPST-NO QUICK CONN/PCB |
Data Sheet |
Negotiable |
|
||||||||||||
|
JM1AN-TMP-DC24V-F |
Panasonic Electric Works |
General Purpose / Industrial Relays 1 Form A 20A 24VDC Slm typ TMP 24VDC |
Data Sheet |
|
|
||||||||||||
