Product Summary

The IDG-500 is a state-of-the-art dual-axis gyroscope designed specifically for complex motion sensing in 3D-input devices and gaming controllers. The IDG-500 gyroscope utilizes state-of-the-art MEMS fabrication with wafer-scale integration technology. With the addition of the new patented Auto Zero feature for minimizing bias drift over temperature, the IDG-500 offers unparalleled gyroscope performance in 3D-input and gaming applications.

Parametrics

IDG-500 absolute maximum ratings: (1)Supply Voltage: -0.3V to +3.6V; (2)Acceleration (Any Axis, unpowered): 10,000g for 0.3ms; (3)Operating Temperature Range: -40 to +105℃; (4)Storage Temperature Range: -40 to +125℃.

Features

IDG-500 features: (1)Integrated amplifiers and low-pass filters; (2)Auto-Zero function; (3)On-chip temperature sensor; (4)High vibration rejection over a wide frequency range; (5)High cross-axis isolation by proprietary MEMS design; (6)3V single-supply operation; (7)Hermetically sealed for temp and humidity resistance; (8)10,000 g shock tolerant; (9)Smallest dual axis gyro package at 4 × 5 × 1.2mm; (10)RoHS and Green Compliant.

Diagrams

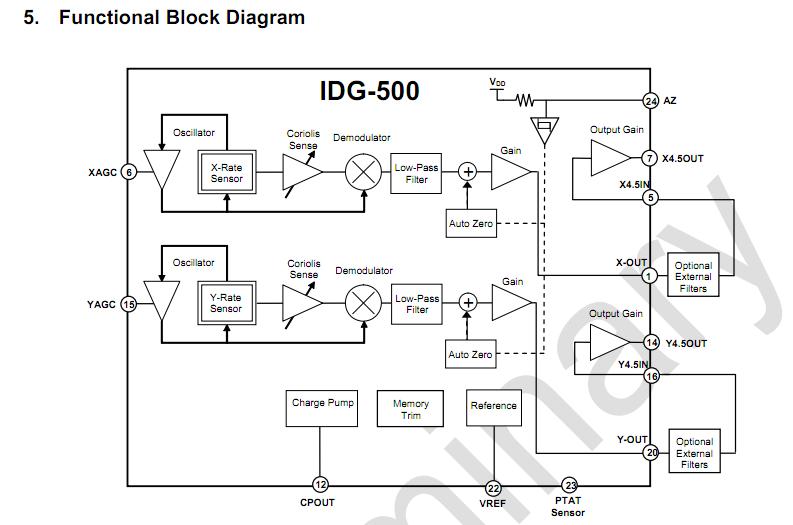

IDG-500 functional block diagram
