Product Summary

The E2K-C25ME1 is a Long-distance capacitive proximity sensor.

Parametrics

E2K-C25ME1 absolute maximum ratings: (1)Insulation resistance: 50 MW min; (2)Dielectric strength: 1000 VAC 50/60 Hz for 1 min; (3)Vibration resistance: 10 to 55 Hz, 1.5 mm; (4)Temperature range: -10℃ to 55℃; (5)Power supply(Operating voltage range): 12 to 24 VDC; (6)Current consumption E models: 10 mA max; (7)Response frequency: 70 Hz.

Features

E2K-C25ME1 features: (1)Detects both metallic and non-metallic objects (glass, lumber, water, oil, plastic, etc.) without direct contact; (2)DC models acquire CE marking.

Diagrams

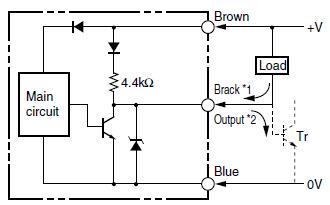

E2K-C25ME1 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
E2K-C25ME1
E2K-C25ME1
Omron Industrial
Proximity Sensors CapacitiveProxSensor 34mm 3-25mm PNP-NC
Data Sheet
0-1: $88.06
1-5: $80.64
5-10: $77.76
10-25: $73.84
E2K-C25ME1-5M
E2K-C25ME1-5M
Omron Industrial
Proximity Sensors E2K C25ME1 W/ 5 METE R CABLE
Data Sheet
0-1: $119.76
1-5: $111.88
5-10: $108.34
10-20: $106.37
E2K-C25ME1-8
E2K-C25ME1-8
Omron Industrial
Proximity Sensors PROXIMITY SENSOR
Data Sheet
0-1: $199.08
1-5: $180.98
5-10: $165.90
10-20: $153.14
