Product Summary

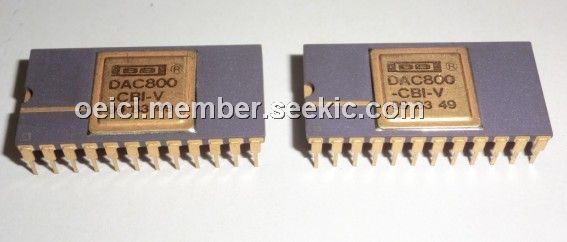

The DAC800-CBI-V is a digital-to-analog converter. The device has all of the functions of its predecessor plus faster settling time and enhanced reliability because of its monolithic construction. The current output model of the DAC800-CBI-V is a single chip integrated circuit containing a subsurface zener reference diode, high speed current switches, and laser-trimmed thin-film resistors. The device provides output voltage ranges of ±2.5V, ±5V, ±10V, 0 to ±5V, 0 to ±10V (V models) or output current ranges of ±1.175mA or 0 to -2.35mA (I models). The DAC800-CBI-V is in a 24-pin dual-in-line package with the popular DAC80 pinout.
Parametrics
DAC800-CBI-V absolute maximum ratings: (1)digital input, resolution: 12 bits max; (2)logic levels, VIH: 2VDC min, 16.5VDC max; VIL: 0VDC min 0.8VDC max; IIH: 20μA max; IIL: -0.36mA; (3)reference voltage output: 6.23V min, 6.3V typ, 6.37 max; (4)current (for external loads), source: 1.5mA min, 2.5mA typ; (5)tempco of drift: ±10ppm/℃ typ, ±30ppm/℃; (6)specification temperature range: 0 to 70℃; (7)operating temperature range: -25 to 85℃; (8)storage temperature range: -65 to 105℃.
Features
DAC800-CBI-V features: (1)low cost high reliability single-chip replacement for industry standard DAC80; (2)12-bit resolution; (3)±1/2LSB maximum nonlinearity, 0 to 70℃; (4)guaranteed monotonicity, 0 to 70℃; (5)dual-in-line package with industry standard pinput; (6)hermetic package; (7)guaranteed specifications with ±12V and ±15V supplies.
