Product Summary

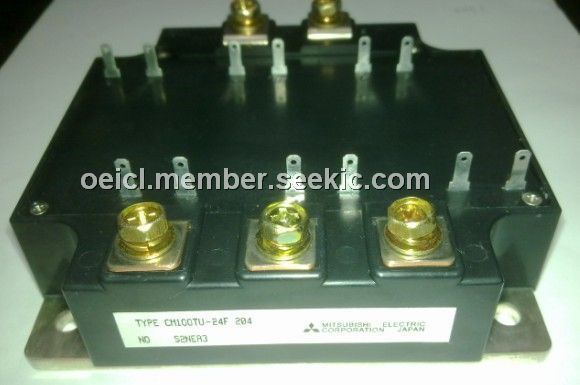

The CM100TU-24F is a high power switching use. The applications of it are General purpose inverters & Servo controls, etc.
Parametrics
CM100TU-24F absolute maximum ratings: (1)Collector-emitter voltage:1200V; (2)Gate-emitter voltage:±20V; (3)Maximum collector dissipation:500W; (4)Junction temperature:-40℃ to +150℃; (5)Storage temperature:-40℃ to +125℃; (6)Isolation voltage:2500Vrms; (7)Collector current:100A or 200A; (8)Emitter current:100A or 200A.
Features
CM100TU-24F features: (1)IC:100A; (2)VCES:1200V; (3)Insulated Type; (4)6-elements in a pack.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM100TU-24F |
|
IGBT MOD 6PAC 1200V 100A F SER |
Data Sheet |
|
|
||||||
