Product Summary
The ADXRS300ABG is a complete angular rate sensor (gyroscope) that uses Analog Devices’ surface-micromachining process to make a functionally complete and low cost angular rate sensor integrated with all of the required electronics on one chip. The manufacturing technique for this ADXRS300ABG is the same high volume BIMOS process used for high reliability automotive airbag accelerometers. The applications of the device include Vehicle chassis rollover sensing, Inertial measurement units and Platform stabilization.
Parametrics
ADXRS300ABG absolute maximum ratings: (1)Acceleration (Any Axis, Unpowered, 0.5 ms): 2000g; (2)Acceleration (Any Axis, Powered, 0.5 ms) 2000g; (3)+VS: -0.3V to +6.0V; (4)Output Short-Circuit Duration (Any Pin to Common): Indefininte; (5)Operating Temperature Range: –55℃ to +125℃; (6)Storage Temperature: –65℃ to +150℃.
Features
ADXRS300ABG features: (1)Complete rate gyroscope on a single chip; (2)Z-axis (yaw rate) response; (3)High vibration rejection over wide frequency; (4)2000 g powered shock survivability; (5)Self-test on digital command; (6)Temperature sensor output; (7)Precision voltage reference output; (8)Absolute rate output for precision applications; (9)5 V single-supply operation; (10)Ultrasmall and light (< 0.15 cc, < 0.5 gram); (11)APPLICATIONS; (12)Vehicle chassis rollover sensing; (13)Inertial measurement units; (14)Platform stabilization.

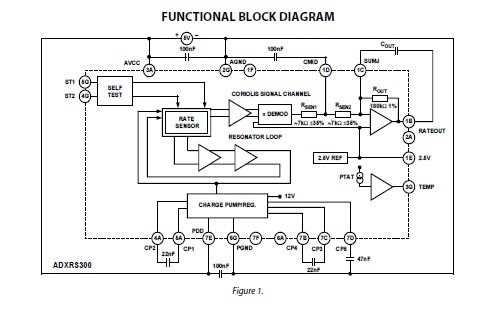

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADXRS300ABG |
Analog Devices Inc |
IC GYROSCOPE SGL COND 32CSPBGA |
Data Sheet |
|
|
||||||||||||
|
ADXRS300ABG-REEL |
Analog Devices Inc |
IC GYRO 300DEG ANG Z-AX 32CSPBGA |
Data Sheet |
|
|
||||||||||||
